This compatibility list contains the machines/computers supported by the HxC Floppy Emulators (SD HxC, USB HxC, or firmware)
This list is probably not complete so if you don't find your device into this list, don't hesitate to ask us directly by email : hxc2001 (at) hxc2001.com
or on the HxC forum : https://torlus.com/floppy/forum
or on the HxC Facebook group (https://www.facebook.com/groups/hxc2001)
If you have tried one HxC Floppy Emulator with a machine not present in this list or with a "Should be Ok!" status, please send us a message to let us know the test result !
And anyway if you get any problem please contact us too ! (Visit the "📧Contact us" page.)
Please note that some machines, especially industrial machines and scientific measurement tools, have been in production for a long time and the manufacturer may have changed the specifications of its floppy disk drive. So the configurations and files present in this list may need some adjustments. In case of doubt, contact us with, if possible, these informations:
Machine brand, machine model and revision, machine manufacturing date, Floppy disk drive brand and model (with a picture), floppy disk drive jumper(s) configuration (with a picture) (if any), Floppy disks used with the machine: DD? HD? Something else? Does the machine use a standard file system? : Is the floppy diskette readable by a computer?
Machine / System types :
Last update: 2024-08-13 19:51:29
| Type | Brand | Model | Year |
Interface Type |
Compatibility |
Notes | Additional infos | Download |
|
|---|---|---|---|---|---|---|---|---|---|
| Robot Arm | ABB | ABB C5.3 / ABB S4 series | - |
Ok! |
|||||
| Robot Arm | ABB | ABB S3 series | - |
Ok! |
|||||
| Plastic Injection moulding machine | Arburg | Arburg 221M Multronica | - |
Shugart |
Ok! |
Emulator jumper setting: S0/ID0A | Custom FM Track format ! | ||
| Plastic Injection moulding machine | Arburg | Arburg Centex | - |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | |||
| Disk Station | Arburg | Arburg COPYLOG (old version) | - |
Shugart |
Ok! |
Emulator jumper setting: S0/ID0A - Full COPYLOG emulation software available ! | Custom FM Track format ! | ||
| Plastic Injection moulding machine | Arburg | Arburg Dialogica | - |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FDD: NEC FD1231H, FS:DOS | ||
| Plastic Injection moulding machine | Arburg | Arburg Hydronica D | - |
Shugart |
Ok! |
Emulator jumper setting: S0/ID0A | Custom FM Track format ! | ||
| Plastic Injection moulding machine | Arburg | Arburg Selogica | - |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FDD: NEC FD1231H, FS:DOS | ||
| Plastic Injection moulding machine | Arburg | Arburg Varima | - |
Ok! |
|||||
| Embroidery Machine | Barudan | Barudan FMC-II | Ok! |
||||||
| Plastic Injection moulding machine | Battenfeld | Battenfeld Unilog 9000 | - |
IBM PC |
Ok! |
FS:DOS (DD/HD) FDD: Teac FD-235HF | |||
| Plastic Injection moulding machine | Battenfeld | Battenfeld Unilog B4 | - |
Ok! |
FS:DOS (DD/HD) | ||||
| Wood working CNC Machine | Biesse | BIESSE 325 | - |
Ok! |
|||||
| Wood working CNC Machine | Biesse | BIESSE NC 400 | - |
Ok! |
|||||
| Press Machine | BILLION | BILLION Hercule | - |
Ok! |
|||||
| Coil Winding Machine | Blume & Redecker | Blume & Redecker AM2100 | - |
Shugart |
Ok! |
FS: Custom MFM format, 40*1*4*1024, Start sector id : 0, 250kbits/s, 300RPM | |||
| CNC punching and notching machine | Boschert | Boschert EL 750 ECCO LINE CNC | - |
IBM PC |
Ok! |
Emulator jumper setting: S0/ID0A | FDD: Teac FD-235HF-D291 (1.44MB), DOS FS (DD/HD) | ||
| Plastic Injection moulding machine | BOY Machines | BOY 50M | - |
Ok! |
FDD: Panasonic JU-257A605P | ||||
| Plastic Injection moulding machine | BOY Machines | BOY 80M | - |
Ok! |
FDD: Panasonic JU-257A605P | ||||
| Milling CNC Machine | Bridgeport | Bridgeport milling machine | - |
Ok! |
|||||
| Knitting Machine | Brother | BAS series (BAS-410,BAS-411,...) | - |
Ok! |
|||||
| Knitting Machine | Brother | BAS-311A | - |
Shugart |
Ok! |
Emulator jumper setting: S0/ID0A | FS:Non-DOS (DD), FG, FDD:TEAC FD-235HF-C929 | ||
| Knitting Machine | Brother | BAS-311E | - |
IBM PC (see note) |
Ok! |
Emulator jumper setting: S0/ID0A, Inverted density signal state : need to force the interface mode to PC 720KB for an 1.44MB image | FS:DOS (DD?/HD) | ||
| Embroidery Machine | Brother | BAS-416A | - |
IBM PC (see note) |
Ok! |
Inverted density signal state : need to force the interface mode to PC 720KB for an 1.44MB image | FDD:Teac FD-235HF-757 (1.44MB), DOS FS (DD/HD) | ||
| CNC/EDM Machine | Charmilles | Charmilles RoboFil 290 | - |
Ok! |
FDD: FD-235HF (DD 720kB only) FS:DOS (DD) | ||||
| CNC/EDM Machine | Charmilles | Charmilles RoboForm 40 | - |
Ok! |
Emulator jumper setting: S0/ID0A | FDD: Teac FD-235HF-C929 (cfg : FG, D0, RY34, HA) | |||
| CNC/EDM Machine | Charmilles | Charmilles SH2 | - |
Ok! |
|||||
| Reed switch measuring machine | Comus Technology | Comus Technology MA1 | - |
Shugart |
Ok! |
FS: Custom, 80*2*16*256, 250kbits/s, 300RPM Note : Philips VME / ERM system | |||
| Component Locator | Contact Systems | CS-400C | - |
Shugart |
Ok! |
FS: Custom FM format : 35*1*18*128 | |||
| Component Locator | Contact Systems | CS-400D | - |
Shugart |
Ok! |
FS: ISO FM format : 35*1*18*128 / 35*2*18*128 | |||
| CNC Glass cutter | CSM Piccola | CSM Piccola L70R | - |
Ok! |
FS:DOS (DD?/HD) | ||||
| Press Brake Machine | Delem | Delem DA 58 | - |
Shugart |
Ok! |
Emulator jumper setting: S0/ID0A + MON/ID3B (Motor ON) - Single drive firmware needed - Contact Support to get it! (free) - Note:Original drive modified to be always selected . . . | FS:DOS (DD) - Single drive firmware needed - Contact Support to get it (free)! | ||
| Plastic Injection moulding machine | Demag | Demag Ergocontrol / NC4 | - |
Ok! |
|||||
| Airplane Flight Simulator/FMC | Embraer | ERJ135 | - |
Ok! |
For Flight simulator purpose only ! In-flight systems need to be certified ! | ||||
| Plastic Injection moulding machine | Engel | Engel e-motion 200/110 | - |
Ok! |
FS:DOS (DD/HD) | ||||
| Drilling Machine | Excellon | Excellon CNC-6 | - |
Shugart |
Ok! |
||||
| Drilling Machine | Excellon | Excellon CNC-7 | - |
Shugart |
Should be Ok! |
||||
| CNC Controller | GE Fanuc | GE FANUC System P-Model G MK II | - |
Shugart |
Should be Ok! |
FDD: CITIZEN 0SDB-25C / MATSUSHITA JU255-A1P | |||
| CNC/Engraving Machine | Gravograph | Gravograph VX | - |
Shugart |
Ok! |
FS: Custom, 80*1*16*256, 250kbits/s, 300RPM | |||
| Milling / Tapping CNC Machine | Haas | Haas Mini mill | - |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD?/HD) | ||
| Milling / Tapping CNC Machine | Haas | Haas VF0 | - |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD?/HD) | ||
| Milling / Tapping CNC Machine | Haas | Haas VF3 | - |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD?/HD) | ||
| Embroidery Machine | Happy | HCM | - |
Should be Ok! |
|||||
| Embroidery Machine | Happy | HM4 | - |
Should be Ok! |
|||||
| Press Machine | Hera | HERA system CNC 41124 | - |
Ok! |
|||||
| Panel Dividing Saw | Holzma | Holzma Fixomat 13 FHL 02 NC | - |
Ok! |
|||||
| Vertical Machining Center | HURCO | HURCO BMC 20 + Ultimax 2 | - |
Shugart |
Ok! |
FDD: NEC FD1037A / NEC FD1036A | |||
| Vertical Machining Center | HURCO | HURCO VSX24 + Ultimax SSM control | - |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A (tested : ID0+ID1+ID2+ID3) | FS:DOS (DD?/HD) | ||
| Knitting Machine | Jumberca | Jumberca Circular Knitting Machine | - |
Shugart |
Ok! |
||||
| Wire Bonder (Semiconductor) | Kaijo | FB-118 | - |
Shugart |
Ok! |
||||
| Robot Arm | Kawasaki | Kawasaki JS30 Robot arm | - |
Shugart |
Ok! |
Emulator jumper setting: S0/ID0A | FDD: Teac FD-235HF-7529 (Jumpers: DS0,RY34,HA(HS-HI),REN),FS: 1.44MB DOS | ||
| Plastic Injection moulding machine | Krauss Maffei | Krauss Maffei KM320 | - |
Ok! |
Mode: Custom, Pin2: Low, Pin34: nDiskChange1 | FDD: Sony MPF920 | |||
| Plastic Injection moulding machine | Krauss Maffei | Krauss Maffei KM150-700C1 | - |
Ok! |
Mode: Custom, Pin2: Low, Pin34: nDiskChange1 | ||||
| Robot Arm | Kuka | Kuka KRC1 | - |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD?/HD) | ||
| Robot Arm | Kuka | Kuka KRC2 | - |
Should be Ok! |
FS:DOS (DD?/HD) | ||||
| Pick & Place Machine | Mydata | Mydata TP9 | - |
Ok! |
Support forum | FDD: Teac FD-55BR (5.25'') * 2 | |||
| Plastic Injection moulding machine | Negri Bossi | Negri Bossi NB 150 | - |
Ok! |
FS:DOS (DD?/HD) | ||||
| Plastic Injection moulding machine | Netstal | Netstal Synergy | - |
Should be Ok! |
iRMX OS – DD Track0:FM, Others Tracks MFM | ||||
| CNC/EDM Machine | ONA | Ona C300 (Techno 60 CNC) | - |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD?/HD) | ||
| Plastic Injection moulding machine | Plasdan | Plasdan | - |
Ok! |
|||||
| Robot | Reis | Reis Robot RL26 / ROBOTstarV control unit | - |
Should be Ok! |
|||||
| Socks Machine | Sangiacomo | Sangiacomo Socks Machine | - |
Ok! |
|||||
| Wood working CNC Machine | SCM / Morbidelli | Morbidelli Author 503 STC | - |
Ok! |
Emulator jumper setting: S0/ID0A | FDD: Teac FD-235HF-4291 (jumpers : 2AB 2CD) DOS FS (DD/HD?) | |||
| Wood working CNC Machine | SCM / Morbidelli | Morbidelli Author 504 STC | - |
Ok! |
|||||
| Wood working CNC Machine | SCM / Morbidelli | Morbidelli Author 510 STC | - |
Ok! |
|||||
| Wood working CNC Machine | SCM / Morbidelli | Morbidelli TRIA 5500 | - |
Ok! |
FDD: TEAC FD-235HF | ||||
| Wood working CNC Machine | SCM / Morbidelli | Morbidelli TRIA 7000 | - |
Ok! |
|||||
| Wood working CNC Machine | SCM / Morbidelli | Morbidelli TRIA 7500 | - |
Ok! |
|||||
| Wood working CNC Machine | SCM / Morbidelli | SCM Tech 90 Super | - |
Shugart |
Ok! |
||||
| Knitting Machine | Shima | SHIMA SEIKI-SES | - |
Should be Ok! |
|||||
| CNC Controller | Sieb & Meyer | Sieb & Meyer CNC 45 | - |
Ok! |
FDD: Teac FD-235HF-7529 (Jumpers: DS0 or DS1,RY34,HA(HS-HI),REN,FG),Custom FS | ||||
| Wire Cut EDM Machine | Sodick | Sodick EDW Wire Cut Machine | - |
Ok! |
|||||
| Garage Machine | SUN | MCS 2000 SL | - |
Shugart |
Ok! |
Note : Original disk copy protected : Can be dumped with the hxc software | |||
| Embroidery Machine | SWF | *All models* | - |
Should be Ok! |
|||||
| Embroidery Machine | Tajima | TFD | - |
Should be Ok! |
|||||
| CNC/EDM Machine | Techno | Techno 60 | - |
Ok! |
|||||
| Furnace | Tylan/Tystar | Tycom 9900 Furnace Control Central Microcomputer. | - |
Shugart |
Ok! |
FS: Custom FM format : 35*1*16*128 FDD:TEAC FD55BR | |||
| Robot | Wittmann | Wittmann Robot W 643 | - |
Ok! |
|||||
| Visual Field Analyser | Zeiss Humphrey | - |
Ok! |
| Type | Brand | Model | Year |
Interface Type |
Compatibility |
Notes | Additional infos | Download |
|
|---|---|---|---|---|---|---|---|---|---|
| Microwave Test Set | Aeroflex / IFR / Marconi | Aeroflex / IFR / Marconi 6200P | - |
Slim-IBM PC |
Ok! |
||||
| Logic Analyzer | Agilent / HP | Agilent / HP 1650A | - |
Shugart |
Should be Ok! |

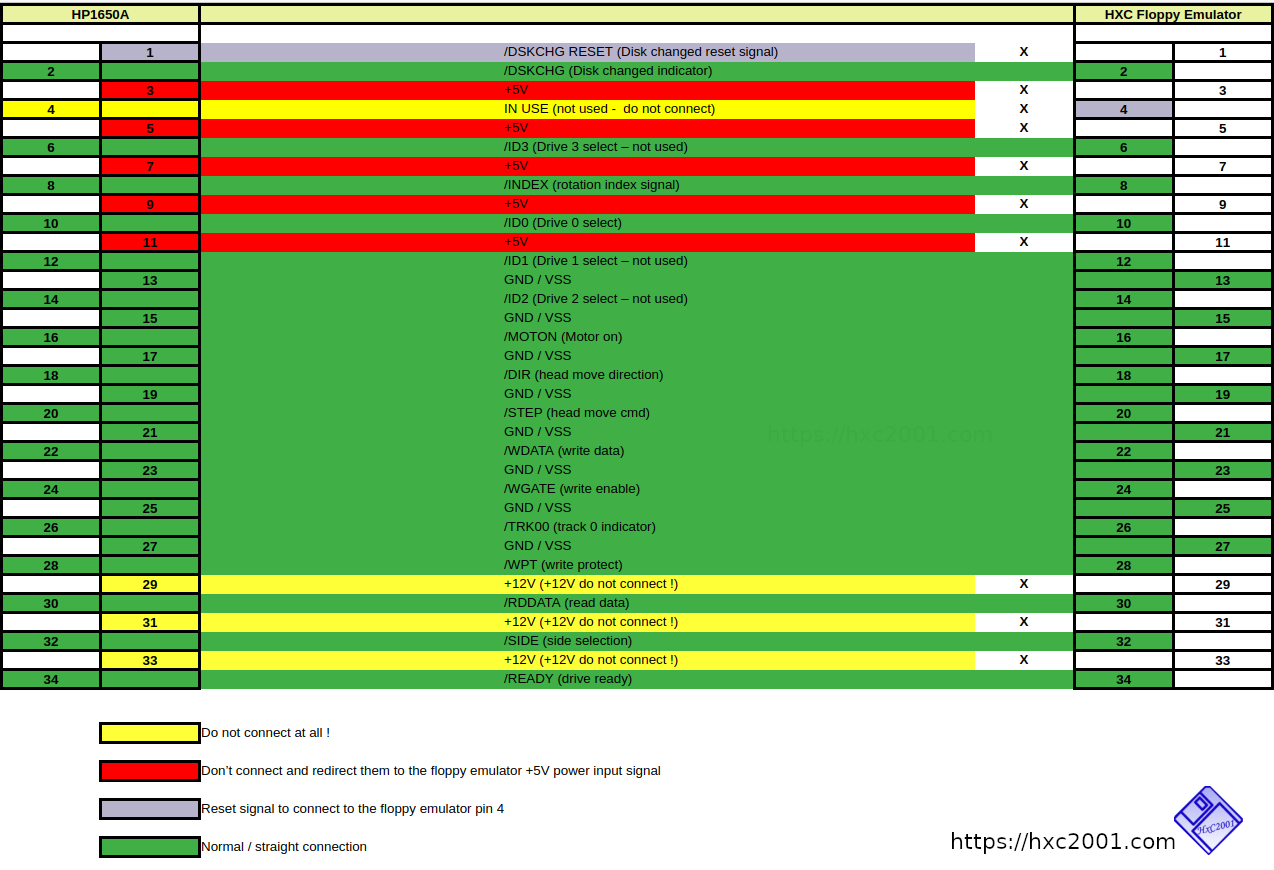

FDD: Sony MP-F52W-30, Important : Floppy ribbon must be modified ! - see the picture, Note : Original disk copy protected : Can be dumped with the hxc software | Drive always selected. Disk change detection cleared on track step. | ||
| Logic Analyzer | Agilent / HP | Agilent / HP 1651A | - |
Shugart |
Should be Ok! |
FDD: Sony MP-F52W-30, Important : Floppy ribbon must be modified ! - see the picture, Note : Original disk copy protected : Can be dumped with the hxc software | Drive always selected. Disk change detection cleared on track step. | ||
| Logic Analyzer | Agilent / HP | Agilent / HP 1650B | - |
Shugart |
Ok! |
Note : Original disk copy protected : Can be dumped with the hxc software | Drive always selected. Disk change detection cleared on track step. | ||
| Logic Analyzer | Agilent / HP | Agilent / HP 1652B | - |
Shugart |
Ok! |
FDD: Sony MP-F52W-30, Important : Floppy ribbon must be modified ! - see the picture, Note : Original disk copy protected : Can be dumped with the hxc software | Drive always selected. Disk change detection cleared on track step. | ||
| Logic Analyzer | Agilent / HP | Agilent / HP 1653B | - |
Shugart |
Ok! |
FDD: Sony MP-F52W-30, Important : Floppy ribbon must be modified ! - see the picture, Note : Original disk copy protected : Can be dumped with the hxc software | Drive always selected. Disk change detection cleared on track step. | ||
| Logic Analyzer | Agilent / HP | Agilent / HP 1660AS | - |
Shugart |
Should be Ok! |
||||
| Semiconductor Parameter Analyzers | Agilent / HP | Agilent / HP 4145A | - |
Shugart |
Ok! |
||||
| Precision Impedance Analyzer | Agilent / HP | Agilent / HP 4294A | - |
Ok! |
HxC SD Rev F | ||||
| Network Analyzer | Agilent / HP | Agilent / HP 4395A | - |
Shugart |
Ok! |
HxC SD Rev F | |||
| Network/Spectrum/Impedance Analyzer | Agilent / HP | Agilent / HP 4396B | - |
Shugart |
Ok! |
HxC SD Rev F | |||
| Oscilloscope | Agilent / HP | Agilent / HP 54540C | - |
Slim-IBM PC |
Ok! |
HxC Slim | |||
| Oscilloscope | Agilent / HP | Agilent / HP 54642D | - |
Slim-IBM PC |
Ok! |
HxC Slim | |||
| Oscilloscope | Agilent / HP | Agilent / HP 54815A | - |
Slim-IBM PC |
Ok! |
HxC Slim | |||
| Oscilloscope | Agilent / HP | Agilent / HP 54825A | - |
Slim-IBM PC |
Ok! |
HxC Slim | |||
| Audio Analyzer and Generator | Agilent / Keysight | Keysight 35670A | - |
Ok! |
HxC SD Rev F | ||||
| Network Analyzer | Agilent / Keysight | Keysight 8714C | - |
Ok! |
|||||
| Network Analyzer | Agilent / Keysight | Keysight 8751A | - |
Ok! |
HxC SD Rev F | ||||
| Network Analyzer | Agilent / Keysight | Keysight 8753D/011 | - |
Ok! |
HxC Slim | ||||
| Network Analyzer | Agilent / Keysight | Keysight 8753E/006 | - |
Ok! |
HxC Slim | ||||
| Network Analyzer | Agilent / Keysight | Keysight 8753ES | - |
Ok! |
HxC Slim | ||||
| Spectrum Analyzer | Agilent / Keysight | Keysight E4440A/E4443A/E4445A/E4446A/E4447A/E4448A | - |
Slim-IBM PC |
Ok! |
HxC Slim | |||
| Optical Spectrum Analyzer | Ando | Ando AQ6317B Optical Spectrum Analyzer | - |
Slim-IBM PC |
Ok! |
Emulator jumper setting: S0/ID0A, 1Ko pull up resistor needed on FLOPPY_DATA# | FDD: Teac FD-05HG | ||
| Optical Spectrum Analyzer | Anritsu | Anritsu MS9710B | - |
Slim-IBM PC |
Ok! |
||||
| Radio Communication Analyzer | Anritsu | Anritsu MT8802A | - |
Slim-IBM PC |
Ok! |
1Ko pull up resistor needed on FLOPPY_DATA# | FDD: Citizen LR102061 A.L | ||
| Frequency Analyzer | Brüel & Kjaer | Real-time Frequency Analyzer Type 2144 | - |
Ok! |
|||||
| Digital Test System | Fluke | Fluke 9100 | - |
Shugart |
Ok! |
FDD: Canon MD350 | |||
| Field Maintenance Processor | Genrad | Genrad 2620 + 2255 | - |
Shugart |
Ok! |
FS: Custom MFM format : 80*2*5*1024 | |||
| Seismograph | Geometrics | Geometrics SmartSeis | - |
Ok! |
|||||
| Biomedical analyzer | Hitachi | Hitachi 704 | - |
Ok! |
SD HxC Rev F | ||||
| Biomedical analyzer | Hitachi | Hitachi 717 | - |
Ok! |
SD HxC Rev F | ||||
| Biomedical analyzer | Hitachi | Hitachi 902 | - |
Ok! |
SD HxC Rev F | ||||
| Biomedical analyzer | Hitachi | Hitachi 904 | - |
Ok! |
SD HxC Rev F | ||||
| Biomedical analyzer | Hitachi | Hitachi 911 | - |
Ok! |
SD HxC Rev F | ||||
| Biomedical analyzer | Hitachi | Hitachi 912 | - |
Ok! |
SD HxC Rev F | ||||
| Biomedical analyzer | Hitachi / Roche | Hitachi / Roche Elecsys 2010 | - |
Ok! |
SD HxC Rev F | ||||
| Oscilloscope | Lecroy | Lecroy DDA-125 | - |
Slim-IBM PC |
Ok! |
FDD: Teac FD-05HG | |||
| Oscilloscope | Lecroy | Lecroy LT224 | - |
Slim-IBM PC |
Ok! |
HxC Slim | |||
| Oscilloscope | Lecroy | Lecroy LT344L / LT344 | - |
Slim-IBM PC |
Ok! |
||||
| Oscilloscope | Lecroy | Lecroy LT584 | - |
Slim-IBM PC |
Ok! |
||||
| Laboratory Machine | Perkin-Elmer | 3030 Atomic Absorption Spectrophotometer | - |
Ok! |
|||||
| Spectrum Analyzer | Rohde & Schwarz | Rohde & Schwarz FSEA30 | - |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | HxC SD Rev F | ||
| Spectrum Analyzer | Rohde & Schwarz | Rohde & Schwarz FSEM20 | - |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | HxC SD Rev F | ||
| Network Analyzer | Rohde & Schwarz | Rohde & Schwarz ZVRE | - |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | HxC SD Rev F | ||
| Scanning electron microscope controller | SORD | SORD Future32 | - |
Shugart |
Ok! |
||||
| Curve Tracer | Tektronix | Tektronix 370A | - |
Shugart-S9XX |
Ok! |
Emulator jumper setting: S0/ID0A, select akai s900 interface mode | HxC SD Rev F, FDD : TEAC FD-235GF, Floppy ribbon modification needed : +5V power voltage present in the floppy ribbon wires 7,9 and 11 (disconnect wires 1,3,5,29,31 and 33 too). DD / 720 kB only | ||
| Curve Tracer | Tektronix | Tektronix 371A | - |
Shugart-S9XX |
Ok! |
Emulator jumper setting: S0/ID0A, select akai s900 interface mode | HxC SD Rev F, FDD : TEAC FD-235GF, Floppy ribbon modification needed : +5V power voltage present in the floppy ribbon wires 7,9 and 11 (disconnect wires 1,3,5,29,31 and 33 too). DD / 720 kB only | ||
| Curve Tracer | Tektronix | Tektronix 370B | - |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | HxC SD Rev F, FDD : TEAC FD-235HF (DD/HD) | ||
| Curve Tracer | Tektronix | Tektronix 371B | - |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | HxC SD Rev F, FDD : TEAC FD-235HF (DD/HD) | ||
| Oscilloscope | Tektronix | Tektronix TDS3034 | - |
Slim-IBM PC |
Ok! |
HxC Slim FDD: TEAC FD-05HF | |||
| Oscilloscope | Tektronix | Tektronix TDS3054B | - |
Slim-IBM PC |
Ok! |
HxC Slim | |||
| Oscilloscope | Tektronix | Tektronix TDS340A | - |
Slim-IBM PC |
Ok! |
HxC Slim FDD: TEAC FD-04HF-2300 | |||
| Oscilloscope | Tektronix | Tektronix TDS360 | - |
Slim-IBM PC |
Ok! |
HxC Slim FDD: TEAC FD-04HF-2300 | |||
| Oscilloscope | Tektronix | Tektronix TDS380 | - |
Slim-IBM PC |
Ok! |
HxC Slim FDD: TEAC FD-04HF-2300 | |||
| Oscilloscope | Tektronix | Tektronix TDS684A | - |
Slim-IBM PC |
Ok! |
HxC Slim | |||
| Oscilloscope | Tektronix | Tektronix TDS744A | - |
Slim-IBM PC |
Ok! |
HxC Slim | |||
| Oscilloscope | Tektronix | Tektronix TDS784A | - |
Slim-IBM PC |
Ok! |
HxC Slim | |||
| Oscilloscope | Tektronix | Tektronix TDS784D | - |
Slim-IBM PC |
Ok! |
HxC Slim | |||
| Airplane Flight Simulator/FMC | Teledyne Controls | Data Loader PDL-615 - (Airbus A320/A330/A340) | - |
Custom Shugart |
Ok! |
Custom installation and configuration. | For Flight simulator purpose only ! In-flight systems need to be certified ! | ||
| Airplane Flight Simulator/FMC | Teledyne Controls | Data Loader PDL-615 - (Boeing 737) | - |
Custom Shugart |
Ok! |
Custom installation and configuration. | For Flight simulator purpose only ! In-flight systems need to be certified ! | ||
| Airplane Flight Simulator/FMC | Teledyne Controls | Data Loader PDL-615 - (Fokker 100) | - |
Custom Shugart |
Ok! |
Custom installation and configuration. | For Flight simulator purpose only ! In-flight systems need to be certified ! | ||
| Video Programming unit | Texas Instrument | VPU200-3104 | - |
Shugart |
Ok! |
Support forum | Kodak 3.3MB 51/4 floppy disk format (160 tracks / 17 sectors per track). | ||
| Hybrid Recorder | Yokogawa | Yokogawa DR241 | - |
Slim-IBM PC |
Ok! |
HxC Slim |
| Type | Brand | Model | Year |
Interface Type |
Compatibility |
Notes | Additional infos | Download |
|
|---|---|---|---|---|---|---|---|---|---|
| Sampler/Sequencer | Akai | Akai ASQ-10 | 1988 |
Shugart |
Ok! |
||||
| Sampler/Sequencer | Akai | Akai MPC2000 | 1997 |
Shugart |
Ok! |
||||
| Sampler/Sequencer | Akai | Akai MPC3000 | 1994 |
Shugart |
Ok! |
||||
| Sampler/Sequencer | Akai | Akai MPC60 | 1988 |
Shugart |
Ok! |
||||
| Sampler/Sequencer | Akai | Akai MPC60 MK II | 1991 |
Shugart |
Ok! |
||||
| Sampler/Sequencer | Akai | Akai S01 | 1993 |
Shugart |
Ok! |
Emulator jumper setting: S0/ID0A | |||
| Sampler/Sequencer | Akai | Akai S1000 | 1988 |
Shugart-S9XX |
Ok! |
1Ko resistor pull-up on RDATA (wire number 30) needed (HxC Rev F footprint : R12) EDIT: Not needed any more ! | FS:Custom, 80*2*10*1024 (HD) / 80*2*5*1024 (DD) - (AKAI S950HD Interface mode) | ||
| Sampler/Sequencer | Akai | Akai S1000PB | 1988 |
Shugart-S9XX |
Ok! |
FS:Custom, 80*2*10*1024 (HD) / 80*2*5*1024 (DD) - (AKAI S950HD Interface mode) | |||
| Sampler/Sequencer | Akai | Akai S1100 | 1990 |
Shugart-S9XX |
Ok! |
1Ko resistor pull-up on RDATA (wire number 30) needed (HxC Rev F footprint : R12) | |||
| Sampler/Sequencer | Akai | Akai S20 | 1997 |
Shugart-S9XX |
Ok! |
1Ko resistor pull-up on RDATA (wire number 30) recommended (HxC Rev F footprint : R12) | |||
| Sampler/Sequencer | Akai | Akai S2000 | 1995 |
Shugart-S9XX |
Ok! |
1Ko resistor pull-up on RDATA (wire number 30) recommended (HxC Rev F footprint : R12) EDIT : Not needed anymore ! | (AKAI S950HD Interface mode) | ||
| Sampler/Sequencer | Akai | Akai S2800 | 1992 |
Shugart-S9XX |
Ok! |
||||
| Sampler/Sequencer | Akai | Akai S3000 | 1993 |
Shugart-S9XX |
Ok! |
(AKAI S950HD Interface mode) | |||
| Sampler/Sequencer | Akai | Akai S3000XL | 1996 |
IBM PC |
Ok! |
Emulator jumper setting: S0/ID0A | (Floppy ribbon flipped !) | ||
| Sampler/Sequencer | Akai | Akai S3200XL | 1996 |
IBM PC |
Ok! |
Emulator jumper setting: S0/ID0A | (Floppy ribbon flipped !) | ||
| Sampler/Sequencer | Akai | Akai S5000 | 1997 |
Ok! |
|||||
| Sampler/Sequencer | Akai | Akai S900 | 1986 |
Shugart-S9XX |
Ok! |
||||
| Sampler/Sequencer | Akai | Akai S950 | 1988 |
Shugart-S9XX |
Ok! |
1Ko resistor pull-up on RDATA (wire number 30) needed (HxC Rev F footprint : R12) EDIT : Not needed anymore ! | FS:Custom, 80*2*10*1024 (HD) / 80*2*5*1024 (DD) | ||
| Sampler | Akai | Akai MD-280(S612) | 1985 |
QuickDisk-10 |
Ok! |
HxC Firmware for Gotek Only ! | |||
| Sampler | Akai | Akai X3700 | 1986 |
QuickDisk-10 |
Ok! |
HxC Firmware for Gotek Only ! | |||
| Sampler | Akai | Akai X7000 | 1986 |
QuickDisk-10 |
Ok! |
HxC Firmware for Gotek Only ! | |||
| Sampler | Akai | Akai S700 | 1987 |
QuickDisk-10 |
Ok! |
HxC Firmware for Gotek Only ! | |||
| Sequencer | Alesis | Alesis Datadisks | 1989 |
Shugart |
Ok! |
Emulator jumper setting: S0/ID0A | FDD: Sony MPF11W-10WP 3.5″ DS/DD, FS:Custom, 80*2*5*1024 (DD) | ||
| Synthesizer | Buchla | Buchla 700 | 1987 |
Shugart |
Ok! |
||||
| Keyboard | Casio | Casio AL-100R | 2001 |
IBM PC |
Ok! |
||||
| Keyboard | Casio | Casio FZ-1 | 1987 |
Shugart |
Ok! |
Emulator jumper setting: S0/ID0A | FS:Custom, 80*2*8*1024,Interleave 3, 500kbits/s, 360RPM | ||
| Keyboard | Casio | Casio FZ-10 | 1987 |
Shugart |
Ok! |
Emulator jumper setting: S0/ID0A | FS:Custom, 80*2*8*1024,Interleave 3, 500kbits/s, 360RPM | ||
| Synthesizer | Crumar | Crumar / GDS (General Development Systems) | 1980 |
Shugart |
Ok! |
||||
| Sampler | Dynacord | Dynacord Add-One / Add-Drive | 1985 |
Shugart |
Ok! |
||||
| Sampler | E-mu | E-mu ESI-32 | 1994 |
IBM PC |
Ok! |
Emulator jumper setting: S0/ID0A | |||
| Sampler | E-mu | E-mu ESI-2000 | 1999 |
IBM PC |
Ok! |
||||
| Sampler | E-mu | E-mu ESI 4000 | 1998 |
IBM PC |
Ok! |
||||
| Sampler | E-mu | E-mu E5000 | 1999 |
IBM PC |
Ok! |
||||
| Sampler | E-mu | E-mu E6400 | 1996 |
IBM PC |
Ok! |
||||
| Keyboard | E-mu | E-mu Emax | 1986 |
Shugart |
Ok! |
Emulator jumper setting: S0/ID0A | |||
| Keyboard | E-mu | E-mu Emax II | 1989 |
Shugart |
Ok! |
Emulator jumper setting: S0/ID0A | |||
| Keyboard/Sampler | E-mu | E-mu Emulator | 1981 |
Shugart |
Ok! |
||||
| Keyboard/Sampler | E-mu | E-mu Emulator II | 1984 |
Shugart |
Ok! |
||||
| Keyboard/Sampler | E-mu | E-mu Emulator III | 1987 |
Shugart |
Ok! |
||||
| Keyboard | E-mu | E-mu SP1200 | 1987 |
Shugart |
Ok! |
||||
| Keyboard | Ensoniq | Ensoniq ASR-X / ASRX | 1997 |
Shugart |
Ok! |
Emulator jumper setting: S0/ID0A | FS:Custom, 80*2*20*512 (HD 1600K) | ||
| Keyboard | Ensoniq | Ensoniq ASR X-PRO | 1998 |
IBM PC |
Ok! |
||||
| Keyboard | Ensoniq | Ensoniq ASR-10 | 1992 |
IBM PC |
Ok! |
||||
| Keyboard | Ensoniq | Ensoniq EPS | 1988 |
Shugart |
Ok! |
Emulator jumper setting: S0/ID0A | |||
| Keyboard | Ensoniq | Ensoniq EPS 16 Plus | 1991 |
Shugart |
Ok! |
Emulator jumper setting: S0/ID0A | |||
| Keyboard | Ensoniq | Ensoniq EPS-M | 1989 |
Shugart |
Should be Ok! |
||||
| Keyboard | Ensoniq | Ensoniq KS-32 | 1992 |
Shugart |
Should be Ok! |
||||
| Keyboard | Ensoniq | Ensoniq KT-76 | 1994 |
Shugart |
Should be Ok! |
||||
| Keyboard | Ensoniq | Ensoniq Mirage | 1984 |
Shugart |
Ok! |
||||
| Keyboard | Ensoniq | Ensoniq Mirage DMS-8 | 1985 |
Shugart |
Ok! |
||||
| Keyboard | Ensoniq | Ensoniq Mirage DSK-1 | 1986 |
Shugart |
Ok! |
||||
| Keyboard | Ensoniq | Ensoniq MR61 | 1996 |
IBM PC |
Ok! |
Emulator jumper setting: S0/ID0A | FDD: Sony MPF520-1 FS: DOS (DD/HD) | ||
| Keyboard | Ensoniq | Ensoniq MR76 | 1998 |
IBM PC |
Ok! |
Emulator jumper setting: S0/ID0A | FDD: Sony MPF520-1 FS: DOS (DD/HD) | ||
| Keyboard | Ensoniq | Ensoniq SD-1 | 1990 |
Shugart |
Ok! |
Emulator jumper setting: S0/ID0A | |||
| Keyboard | Ensoniq | Ensoniq SDP-1 | 1986 |
Shugart |
Should be Ok! |
||||
| Keyboard | Ensoniq | Ensoniq SQ-80 | 1987 |
Shugart |
Ok! |
||||
| Keyboard | Ensoniq | Ensoniq SQ1 | 1990 |
Shugart |
Should be Ok! |
||||
| Keyboard | Ensoniq | Ensoniq SQ2 | 1991 |
Shugart |
Should be Ok! |
||||
| Keyboard | Ensoniq | Ensoniq TS-10 | 1993 |
IBM PC |
Ok! |
Emulator jumper setting: S0/ID0A | |||
| Keyboard | Ensoniq | Ensoniq TS-12 | 1993 |
IBM PC |
Ok! |
Emulator jumper setting: S0/ID0A | |||
| Keyboard | Ensoniq | Ensoniq VFX | 1989 |
Shugart |
Ok! |
Emulator jumper setting: S0/ID0A | |||
| Keyboard | Ensoniq | Ensoniq VFX-SD | 1989 |
Shugart |
Ok! |
Emulator jumper setting: S0/ID0A | |||
| Keyboard | Ensoniq | Ensoniq ZR-76 | 1998 |
IBM PC |
Ok! |
||||
| Sampler | Fairlight | Fairlight C.M.I | 1979 |
Shugart |
Ok! |
Custom installation service : https://mustudio.fr/2020/11/15/flash-kit-for-fairlight-cmi-2/ | |||
| Drum Machine | Forat | F 9000 / Linn 9000 | 1984 |
Shugart - 26 |
Ok! |
26 pins to 34 pins floppy ribbon adapter needed. | |||
| Keyboard | GeneralMusic | GEM S2 | 1992 |
Should be Ok! |
|||||
| Keyboard | GeneralMusic | GEM S3 | 1992 |
IBM PC |
Ok! |
||||
| Keyboard | GeneralMusic | GEM WS1 | 1990 |
IBM PC |
Ok! |
Emulator jumper setting: S0/ID0A | |||
| MIDI Sequencer | GeneralMusic | GEM WX-Expander | 1993 |
IBM PC |
Ok! |
FDD: Epson SMD-1000, FS: DOS (HD) | |||
| Organ | Hammond | Hammond XH-200 New Elegante | - |
Should be Ok! |
|||||
| Organ | Hammond | XH-200/SP Century Limited Edition | - |
Shugart |
Ok! |
FS: DOS (DD/HD), ID0, Shugart, Upside down floppy ribbon | |||
| Organ | Hammond | Hammond XH-272 / XH-273 New Elegante | - |
Should be Ok! |
It's an Orla GT5000 | ||||
| Organ | Hammond | Hammond XT-100 Aurora Classic | - |
Should be Ok! |
It's an Orla GT5000 | ||||
| Organ | Hammond | Hammond XT-172 / XT-173 Aurora Classic | - |
Should be Ok! |
It's an Orla GT5000 | ||||
| Organ | Hammond | Hammond XT-272 / XT-273 Aurora Grande | - |
Should be Ok! |
It's an Orla GT5000 | ||||
| Controller | JB-Lighting | Licon 1 | - |
Ok! |
|||||
| Synthesizer | Kawai | Kawai K5000 | 1996 |
Ok! |
|||||
| MIDI Sequencer | Kawai | Kawai Q80 | 1989 |
Ok! |
FS:Custom Dos like,80*2*9*512, 250kbits/s, FDD: Teac 235F | ||||
| MIDI Sequencer | Ketron | MidJay (Plus) | - |
Ok! |
|||||
| Keyboard/Module | Ketron | SD1 (plus),SD3,SD5,SD8 | 2002 |
Ok! |
|||||
| Keyboard/Module | Ketron | X1,X4,X8 | - |
Ok! |
|||||
| Keyboard/Module | Ketron | XD3,XD8,XD9 | - |
Ok! |
|||||
| Keyboard | Ketron | MS20,MS40,MS50,MS60,MS100 | 1994? |
Ok! |
|||||
| Keyboard | Korg | Korg 01/W | 1991 |
Shugart |
Ok! |
Emulator jumper setting: S0/ID0A | |||
| Keyboard | Korg | Korg DSM-1 | 1987 |
Shugart |
Ok! |
Emulator jumper setting: S0/ID0A | FS:Custom, 80*2*10*1024 (HD 1600K),Interleave:1 Gap3:116 | ||
| Keyboard | Korg | Korg DSS-1 | 1986 |
Shugart |
Ok! |
FS:Custom, 80*2*5*1024 (DD 800K) | |||
| Keyboard | Korg | Korg i2 | 1993 |
Shugart |
Ok! |
||||
| Keyboard | Korg | Korg i3 | 1993 |
Should be Ok! |
|||||
| Keyboard | Korg | Korg Is35 | 1999 |
Should be Ok! |
|||||
| Keyboard | Korg | Korg Is40 | 1998 |
Ok! |
(Upside down floppy ribbon - ID1) | ||||
| Keyboard | Korg | Korg Is50 | 1999 |
Should be Ok! |
|||||
| Keyboard | Korg | Korg PA50 | 2004 |
Ok! |
|||||
| Keyboard | Korg | Korg PA60 | 1998 |
Should be Ok! |
|||||
| Keyboard | Korg | Korg PA80 | 1998 |
Should be Ok! |
|||||
| Keyboard | Korg | Korg T1 | 1989 |
Should be Ok! |
|||||
| Keyboard | Korg | Korg T2 | 1991 |
Should be Ok! |
|||||
| Keyboard | Korg | Korg N364/N264 | 1996 |
Should be Ok! |
|||||
| Synthesizer | Korg | Korg Triton Rack | 2000 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: Panasonic JU-257A107P | ||
| Keyboard | Korg | Korg T2 EX | 1989 |
Ok! |
|||||
| Keyboard | Korg | Korg T3/T3ex | 1989 |
Shugart |
Ok! |
Emulator jumper setting: S0/ID0A | FS:Custom, 80*2*10*1024 (HD 1600K),Interleave:1 Gap3:116 | ||
| Keyboard | Korg | Korg Trinity | 1995 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | |||
| Keyboard | Korg | Korg X3 | 1993 |
Shugart - 26 |
Ok! |
26 pins to 34 pins floppy ribbon adapter needed. | |||
| Sequencer | Korg | Korg SQD-1 | 1985 |
QuickDisk-10 |
Ok! |
HxC Firmware for Gotek Only ! | |||
| Sequencer | Korg | Korg SQD-8 | 1987 |
QuickDisk-10 |
Ok! |
HxC Firmware for Gotek Only ! | |||
| Keyboard | Kurzweil | Kurzweil K2000 | 1991 |
IBM PC |
Ok! |
Emulator jumper setting: S0/ID0A | |||
| Keyboard | Kurzweil | Kurzweil K2000R | 1994 |
IBM PC |
Ok! |
Emulator jumper setting: S0/ID0A | |||
| Synthesizer | Kurzweil | Kurzweil K2000RS | 1998 |
IBM PC |
Ok! |
Emulator jumper setting: S0/ID0A | |||
| Keyboard | Kurzweil | Kurzweil K2500 | 1996 |
IBM PC |
Ok! |
Emulator jumper setting: S0/ID0A | |||
| Keyboard | Kurzweil | Kurzweil K2500R | - |
IBM PC |
Ok! |
Emulator jumper setting: S0/ID0A | |||
| Sampler | Oberheim | DPX1 | 1987 |
Ok! |
|||||
| Organ | Orla | Orla GT5000 | - |
Shugart |
Ok! |
FS: DOS (DD/HD), ID0, Shugart, Upside down floppy ribbon | |||
| Organ | Orla | Orla GT9000LX | - |
Akai S950HD |
Ok! |
||||
| Sampler | PEAVEY | PEAVEY SP | 1992 |
Shugart |
Ok! |
ID0,Shugart | |||
| Piano player | PianoDisc | PianoDisc PDS-128Plus | - |
Shugart |
Ok! |
Emulator jumper setting: S0/ID0A | FS:DOS (DD?/HD), FDD: TEAC FD-235HF-7529 | ||
| Keyboard/Sampler | Roland | Roland E-50 | 2007 |
Should be Ok! |
|||||
| Keyboard/Sampler | Roland | Roland E-86 | 1993 |
Should be Ok! |
|||||
| Keyboard/Sampler | Roland | Roland E-96 | 1995 |
Ok! |
Emulator jumper setting: S0/ID0A | FS:DOS (DD/HD), FDD: Chinon FZ-357 (cfg : DS0,MM), Pin 2 low | |||
| Arranger | Roland | Roland RA-800 | 1996 |
Shugart-S9XX |
Ok! |
Emulator jumper setting: S0/ID0A | FDD : Panasonic JU-257A166P (cfg: RY,MO,D0,PC) / Chinon FZ-357 (cfg : DS0,MM) | ||
| Keyboard | Roland | Roland G-800 | 1995 |
Shugart-S9XX |
Ok! |
Emulator jumper setting: S0/ID0A | FDD : Panasonic JU-257A166P (cfg: RY,MO,D0,PC) / Chinon FZ-357 (cfg : DS0,MM) | ||
| Keyboard | Roland | Roland G-1000 | 1998 |
Ok! |
Emulator jumper setting: S1/ID1A | ||||
| Keyboard/Sampler | Roland | Roland JW-50 | 1992 |
Shugart |
Ok! |
DS:DOS (DD), FDD: Chinon FZ-354 (cfg : DS0,MM,RDY) | |||
| Sequencer | Roland | Roland MC-300 | 1988 |
Ok! |
|||||
| Sequencer | Roland | Roland MC-50 | 1990 |
Ok! |
Emulator jumper setting: S0/ID0A | FDD: Panasonic JU-253A3M (DD) | |||
| Sequencer | Roland | Roland MC-50 mkII | 1994 |
Ok! |
Emulator jumper setting: S0/ID0A | FDD: Chinon FZ-354 (cfg : DS0,MM,RDY) | |||
| Sequencer | Roland | Roland MC-80 | 2000 |
Should be Ok! |
|||||
| Music Player | Roland | Roland MT-120 | 1993 |
Ok! |
Emulator jumper setting: S0/ID0A | FS:DOS (DD/HD), FDD: Chinon FZ-357 (cfg : DS0,MM), Pin 2 high | |||
| Music Player | Roland | Roland MT-200 | 1994 |
Ok! |
Emulator jumper setting: S0/ID0A | FS:DOS (DD/HD), FDD: Chinon FZ-357 (cfg : DS0,MM), Pin 2 high | |||
| Music Player | Roland | Roland MT-300 | 1999 |
Ok! |
FS:DOS (DD?/HD) FDD: Mitsubishi Electric MF355F-3252MG S/N M049230 rev. D | ||||
| Sequencer | Roland | Roland MV-30 | 1990 |
Shugart |
Ok! |
Emulator jumper setting: S0/ID0A | FDD: Chinon FZ-354 (cfg : DS0,MM,RDY) | ||
| Keyboard/Sampler | Roland | Roland S-330 | 1988 |
Ok! |
|||||
| Keyboard/Sampler | Roland | Roland S-50 | 1986 |
Ok! |
|||||
| Keyboard/Sampler | Roland | Roland S-550 | 1987 |
Ok! |
|||||
| Keyboard/Sampler | Roland | Roland S-750 | 1991 |
Ok! |
2,2Ko resistors pull-up on pin 2 & 34 needed. (Rev F HxC resistor footprint R11 & R16) | ||||
| Keyboard/Sampler | Roland | Roland S-760 | 1994 |
IBM PC |
Ok! |
Emulator jumper setting: S0/ID0A, (2,2Ko resistors pull-up on pin 2 & 34 needed : Rev F HxC resistor footprint R11 & R16) | FDD: Chinon FZ-357 (DD/HD) (DS0+MM+DC) | ||
| Sampler | Roland | Roland S-770 | 1989 |
Ok! |
Emulator jumper setting: S0/ID0A | FDD: Chinon FX-357 (DD/HD) | |||
| Keyboard/Sampler | Roland | Roland DJ-70 | 1992 |
IBM PC |
Ok! |
Emulator jumper setting: S0/ID0A, (2,2Ko resistors pull-up on pin 2 & 34 needed : Rev F HxC resistor footprint R11 & R16) | FDD: Chinon FZ-357 (DD/HD) (DS0+MM+DC) | ||
| Sequencer | Roland | Roland SoundBrush SB-55 | 1991 |
Shugart |
Ok! |
||||
| Keyboard/Sampler | Roland | Roland VA-7 | 2000 |
Should be Ok! |
|||||
| Keyboard/Sampler | Roland | Roland W-30 | 1989 |
Shugart |
Ok! |
Emulator jumper setting: S0/ID0A | FDD: Chinon FX-354 REV A (DD) (cfg : DS0,MM) | ||
| Keyboard/Sampler | Roland | Roland W-50 | 1993 |
Should be Ok! |
FDD: Chinon FZ-354 (cfg : DS0,MM,RDY) | ||||
| Keyboard | Roland | Roland XP-50 | 1995 |
Ok! |
1Ko resistor pull-up on RDATA (wire number 30) needed (HxC Rev F footprint : R12) | FS: DOS (HD),ID1 | |||
| Keyboard | Roland | Roland XP-80 | 1996 |
Ok! |
1Ko resistor pull-up on RDATA (wire number 30) needed (HxC Rev F footprint : R12) | FS: DOS (HD),ID1 | |||
| Sampler | Roland | Roland MKS-100 | 1986 |
QuickDisk-10 |
Ok! |
HxC Firmware for Gotek Only ! | |||
| Sequencer | Roland | Roland PR-100 | 1987 |
QuickDisk-10 |
Ok! |
HxC Firmware for Gotek Only ! | |||
| Sampler | Roland | Roland S-220 | 1987 |
QuickDisk-10 |
Ok! |
HxC Firmware for Gotek Only ! | |||
| Keyboard/Sampler | Roland | Roland S-10 | 1987 |
QuickDisk-10 |
Ok! |
HxC Firmware for Gotek Only ! | |||
| Sequencer | Roland | Roland MT-100 | 1988 |
QuickDisk-10 |
Ok! |
HxC Firmware for Gotek Only ! | |||
| Keyboard/Sampler | Sequential Circuits | Prophet 2000 | 1985 |
Ok! |
|||||
| Sampler | Sequential Circuits | Prophet 2002 | 1985 |
Ok! |
|||||
| Sampler | Sequential Circuits | Prophet 3000 | 1987 |
IBM PC |
Ok! |
Preview | FDD: 1.44MB YE-DATA 701 6031 (P2 Jumper) | ||
| Sampler | Sequential Circuits | Studio 440 | 1986 |
Ok! |
https://torlus.com/floppy/forum/viewtopic.php?f=27&t=654 | ||||
| Keyboard | Synergy | DK Synergy ii | 1982 |
Shugart |
Ok! |
||||
| Keyboard | Solton | MS 40 | 1994 |
Ok! |
|||||
| Keyboard | Solton | MS 50 | 1995 |
Ok! |
|||||
| Keyboard | Solton | MS 60 | 1994 |
Ok! |
|||||
| Keyboard | Technics | Technics KN1400 | 1998 |
Should be Ok! |
|||||
| Keyboard | Technics | Technics KN2000 | 1993 |
Shugart - FFC24 |
Ok! |
24 pins FFC ribbon to 34 pins floppy ribbon adapter needed. Emulator jumper setting: S0/ID0A | Matsushita Electronic EME-213DBJ | ||
| Keyboard | Technics | Technics SX-PR603/M | 2004 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: ALPS DF354H104E | ||
| Keyboard | Technics | Technics SX-PR703/M | - |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: ALPS DF354H104E | ||
| Keyboard | Technics | Technics SX-PR903C | - |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: ALPS DF354H104E | ||
| Keyboard | Technics | Technics SX-PR903H | - |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: ALPS DF354H104E | ||
| Keyboard | Technics | Technics SX-KN2400 | 2003 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: ALPS DF354H104F | ||
| Keyboard | Technics | Technics SX-KN2600 | 2003 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: ALPS DF354H104F | ||
| Keyboard | Technics | Technics SX-KN6500 | 2001 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: ALPS DF354H104E | ||
| Keyboard | Technics | Technics SX-KN7000 | 2002 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: ALPS DF354H104F | ||
| Organ | Technics | Technics SX-GA1 | 1994 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) | ||
| Organ | Technics | Technics SX-GA3 | 1994 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) | ||
| Data recorder | Technics | Technics Digital Disk Recorder / SY-FD5 | - |
Shugart |
Should be Ok |
||||
| Data recorder | Technics | Technics Digital Disk Recorder / SY-FD20 | - |
Shugart - FFC24 |
Should be Ok |
FDD: Matsushita Electronic EME-213DVA | |||
| Keyboard | Yamaha | Yamaha Clavinova CVP-50 | 1989 |
Shugart |
Should be Ok! |
Emulator jumper setting: S0/ID0A | FDD: Mitsubishi MF353C-152M (DD) | ||
| Keyboard | Yamaha | Yamaha Clavinova CVP-55 | 1991 |
Shugart |
Should be Ok! |
Emulator jumper setting: S0/ID0A | FDD: Mitsubishi MF353C-152M (DD) | ||
| Keyboard | Yamaha | Yamaha Clavinova CVP-59S | 1995 |
Shugart |
Should be Ok! |
Emulator jumper setting: S0/ID0A | FDD: Mitsubishi MF353C-152M (DD) | ||
| Keyboard | Yamaha | Yamaha Clavinova CVP-60 | - |
Should be Ok! |
FDD: Mitsubishi MF353C-152M | ||||
| Keyboard | Yamaha | Yamaha Clavinova CVP-65 | 1991 |
Shugart |
Should be Ok! |
Emulator jumper setting: S0/ID0A | FDD: Mitsubishi MF353C-152M (DD) | ||
| Keyboard | Yamaha | Yamaha Clavinova CVP-70 | 1989 |
Shugart |
Should be Ok! |
Emulator jumper setting: S0/ID0A | FDD: Mitsubishi MF353C-152M (DD) | ||
| Keyboard | Yamaha | Yamaha Clavinova CVP-75 | 1991 |
Shugart |
Ok! |
Emulator jumper setting: S0/ID0A | HxC SD Rev F – FDD: MF353C-152MZ (DD) | ||
| Keyboard | Yamaha | Yamaha Clavinova CVP-83S | 1993 |
Shugart |
Ok! |
Emulator jumper setting: S0/ID0A | FDD: Mitsubishi MF353C-152M (DD) | ||
| Keyboard | Yamaha | Yamaha Clavinova CVP-85 | 1993 |
Shugart |
Should be Ok! |
Emulator jumper setting: S0/ID0A | FDD: Mitsubishi MF353C-152M (DD) | ||
| Keyboard | Yamaha | Yamaha Clavinova CVP-87 | 1993 |
Shugart |
Should be Ok! |
Emulator jumper setting: S0/ID0A | FDD: Mitsubishi MF353C-152M (DD) | ||
| Keyboard | Yamaha | Yamaha Clavinova CVP-89 | - |
Shugart |
Should be Ok! |
Emulator jumper setting: S0/ID0A | FDD: Mitsubishi MF353C-152M (DD) | ||
| Keyboard | Yamaha | Yamaha Clavinova CVP-156 | - |
IBM PC |
Should be Ok! |
Emulator jumper setting: S1/ID1A | FDD: Mitsubishi MF355F-3252MG (DD only) | ||
| Keyboard | Yamaha | Yamaha Clavinova CVP-158 | - |
IBM PC |
Should be Ok! |
Emulator jumper setting: S1/ID1A | FDD: Mitsubishi MF355F-3252MG (DD only) | ||
| Keyboard | Yamaha | Yamaha Clavinova CVP-103 | 1999 |
Should be Ok! |
|||||
| Keyboard | Yamaha | Yamaha Clavinova CVP-105 | 1999 |
Should be Ok! |
|||||
| Keyboard | Yamaha | Yamaha Clavinova CVP-203 | 2001 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: ALPS DF354H | ||
| Keyboard | Yamaha | Yamaha Clavinova CVP-205 | 2001 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: ALPS DF354H | ||
| Keyboard | Yamaha | Yamaha Clavinova CVP-207 | 2001 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: ALPS DF354H | ||
| Sequencer | Yamaha | Yamaha Disklavier DKC5R | - |
Shugart |
Ok! |
FS:DOS (DD) | |||
| Piano | Yamaha | Yamaha Disklavier MX80/88 | - |
Shugart |
Ok! |
FS:DOS (DD) | |||
| Synthesizer | Yamaha | Yamaha DX7IIFD | 1986 |
Ok! |
FDD: Panasonic JU-363 (DD), Disk change reset signal on pin 1. | ||||
| Organ | Yamaha | Yamaha Electone EL-70 | 1991 |
Ok! |
|||||
| Organ | Yamaha | Yamaha Electone EL-40 | 1991 |
Ok! |
Emulator jumper setting: S0/ID0A | FS:DOS (DD) FDD: Mitsubishi MF-355?, Interface Mode=Custom, Pin 2=nDiskChange 1, Pin 34=nReady | |||
| Organ | Yamaha | Yamaha Electone EL-60 | 1991 |
Ok! |
Emulator jumper setting: S0/ID0A | FS:DOS (DD) FDD: Mitsubishi MF-355?, Interface Mode=Custom, Pin 2=nDiskChange 1, Pin 34=nReady | |||
| Organ | Yamaha | Yamaha Electone EL-70 | 1991 |
Ok! |
Emulator jumper setting: S0/ID0A | FS:DOS (DD) FDD: Mitsubishi MF-355?, Interface Mode=Custom, Pin 2=nDiskChange 1, Pin 34=nReady | |||
| Organ | Yamaha | Yamaha Electone EL-90 | 1991 |
Ok! |
Emulator jumper setting: S0/ID0A | FS:DOS (DD) FDD: Mitsubishi MF-355?, Interface Mode=Custom, Pin 2=nDiskChange 1, Pin 34=nReady | |||
| Organ | Yamaha | Yamaha Electone EL-100 | 2002 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: ALPS DF354H | ||
| Organ | Yamaha | Yamaha Electone EL-500 | 1999 |
IBM PC |
Should be Ok! |
||||
| Organ | Yamaha | Yamaha Electone EL-700 | 1999 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: ALPS DF354H | ||
| Organ | Yamaha | Yamaha Electone EL-900 | 1998 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) | ||
| Organ | Yamaha | Yamaha Electone EL-XX / EL-XXX series | - |
IBM PC/S950 |
Should be Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: ALPS DF354H | ||
| Organ | Yamaha | Yamaha AR-80 Artiste | 1997 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) | ||
| Organ | Yamaha | Yamaha AR-100 Artiste | 1996 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) | ||
| Keyboard/Sequencer/Sampler | Yamaha | Yamaha EX5 | 1998 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: Mitsubishi Electric MF355F-3252MG rev. D | ||
| Sequencer/Sampler | Yamaha | Yamaha EX5R | 1998 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: Mitsubishi Electric MF355F-3252MG rev. D | ||
| Keyboard/Sequencer/Sampler | Yamaha | Yamaha EX7 | 1998 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: Mitsubishi Electric MF355F-3252MG rev. D | ||
| Sequencer / Data filer | Yamaha | Yamaha MDF2 | 1992 |
Shugart - FFC24 |
Ok! |
FFC 24 pins to 34 pins floppy ribbon adapter needed. | FDD: Matsushita EME-213YV | ||
| Sequencer / Data filer | Yamaha | Yamaha MDF3 | 1997 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: Mitsubishi Electric MF355F-3252MG | ||
| Keyboard | Yamaha | Yamaha PSR-340 | 1999 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: ALPS DF354H | ||
| Keyboard | Yamaha | Yamaha PSR-350 | 2001 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: ALPS DF354H | ||
| Keyboard | Yamaha | Yamaha PSR-450 | 2004 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) | ||
| Keyboard | Yamaha | Yamaha PSR-540 | 1999 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) | ||
| Keyboard | Yamaha | Yamaha PSR-550 | 2001 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: ALPS Electric DF354H121F | ||
| Keyboard | Yamaha | Yamaha PSR-600 | 1992 |
Shugart - FFC24 |
Ok! |
24 pins FFC ribbon to 34 pins floppy ribbon adapter needed. Emulator jumper setting: S1/ID1A | FS:DOS (DD) | ||
| Keyboard | Yamaha | Yamaha PSR-620 | 1995 |
Shugart - FFC24 |
Should be Ok! |
24 pins FFC ribbon to 34 pins floppy ribbon adapter needed. Emulator jumper setting: S1/ID1A | FS:DOS (DD) FDD: Matsushita Electronic EME-213YV | ||
| Keyboard | Yamaha | Yamaha PSR-630 | 1997 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: Mitsubishi Electric MF355F-3252MG rev. F | ||
| Keyboard | Yamaha | Yamaha PSR-640 | 1999 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: Mitsubishi Electric MF355F-3252MG rev. F | ||
| Keyboard | Yamaha | Yamaha PSR-730 | 1997 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: Mitsubishi Electric MF355F-3252MG rev. F | ||
| Keyboard | Yamaha | Yamaha PSR-740 | 1999 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: Mitsubishi Electric MF355F-3252MG rev. F | ||
| Keyboard | Yamaha | Yamaha PSR-1000 | 2001 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) | ||
| Keyboard | Yamaha | Yamaha PSR-1100 | 2003 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) | ||
| Keyboard | Yamaha | Yamaha PSR-2000 | 2001 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) | ||
| Keyboard | Yamaha | Yamaha PSR-2100 | 2003 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) | ||
| Keyboard | Yamaha | Yamaha PSR-1700 | 1993 |
Shugart - FFC24 |
Ok! |
24 pins FFC ribbon to 34 pins floppy ribbon adapter needed. Emulator jumper setting: S1/ID1A | FS:DOS (DD) | ||
| Keyboard | Yamaha | Yamaha PSR-2700 | 1993 |
Shugart - FFC24 |
Should be Ok! |
24 pins FFC ribbon to 34 pins floppy ribbon adapter needed. Emulator jumper setting: S1/ID1A | FS:DOS (DD) FDD: Matsushita Electronic EME-213YV | ||
| Keyboard | Yamaha | Yamaha PSR-5700 | 1992 |
Shugart |
Ok! |
Emulator jumper setting: S0/ID0A | FDD: Mitsubishi MF355C-152MZ, Upside down floppy ribbon | ||
| Keyboard | Yamaha | Yamaha PSR-6000 | 1994 |
Shugart - FFC24 |
Should be Ok! |
24 pins FFC ribbon to 34 pins floppy ribbon adapter needed. Emulator jumper setting: S1/ID1A | FS:DOS (DD) FDD: Matsushita Electronic EME-213YV | ||
| Keyboard | Yamaha | Yamaha PSR-6700 | 1991 |
Shugart |
Should be Ok! |
FS:DOS (DD) FDD: MITSUBISHI MF353C-152MZ | |||
| Keyboard | Yamaha | Yamaha PSR-8000 | 1997 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) | ||
| Keyboard | Yamaha | Yamaha PSR-9000 | 1999 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) | ||
| Keyboard | Yamaha | Yamaha PSR-SQ16 | 1992 |
Shugart - FFC24 |
Ok! |
24 pins FFC ribbon to 34 pins floppy ribbon adapter needed. Emulator jumper setting: S1/ID1A | FS:DOS (DD) FDD: Matsushita Electronic EME-213YV | ||
| Keyboard | Yamaha | Yamaha PSR-A1000 | 2001 |
Should be Ok! |
FS:DOS (DD/HD) | ||||
| Sampler | Yamaha | Yamaha A3000 | 1997 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: Mitsubishi Electric MF355F-3252MG, HxC SD Rev F | ||
| Sampler | Yamaha | Yamaha A4000 | 1999 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: Mitsubishi Electric MF355F, HxC SD Rev F | ||
| Sampler | Yamaha | Yamaha A5000 | 1999 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: Mitsubishi Electric MF355F, HxC SD Rev F | ||
| Sequencer | Yamaha | Yamaha QY300 | 1994 |
Shugart - FFC24 |
Should be Ok! |
24 pins FFC ribbon to 34 pins floppy ribbon adapter needed. Emulator jumper setting: S1/ID1A | FS:DOS (DD) FDD: Matsushita Electronic EME-213YV | ||
| Sequencer | Yamaha | Yamaha QY700 | 1996 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: EPSON SMD-1340-004-02 FF0605 / ALPS DF354H121F | ||
| Sequencer | Yamaha | Yamaha RM1x | 1999 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: Mitsubishi Electric MF355F-3252MG rev. D | ||
| Synthesizer | Yamaha | Yamaha VL1 (-m) | 1994 |
Shugart - FFC26 |
Ok! |
26 pins to 34 pins floppy ribbon adapter needed. | FS:DOS (HD) FDD: EME-216Y | ||
| Synthesizer | Yamaha | Yamaha VL7 (-m) | - |
Shugart - FFC26 |
Ok! |
26 pins to 34 pins floppy ribbon adapter needed. | FS:DOS (HD) FDD: EME-216Y | ||
| Keyboard | Yamaha | Yamaha SY77 | 1989 |
Shugart - 26 |
Ok! |
26 pins to 34 pins floppy ribbon adapter needed. | FS:DOS (DD) FDD: Newtronics/MITSUMI D357B | ||
| Keyboard | Yamaha | Yamaha SY85 | 1992 |
Shugart - FFC24 |
Ok! |
24 pins FFC ribbon to 34 pins floppy ribbon adapter needed. Emulator jumper setting: S1/ID1A | FS:DOS (DD) FDD: Matsushita Electronic EME-213YV | ||
| Keyboard | Yamaha | Yamaha SY99 | 1991 |
Shugart - 26 pins |
Ok! |
26 pins ribbon to 34 pins floppy ribbon adapter needed. Emulator jumper setting: S0/ID0A | FS:DOS (DD) FDD: Newtronics/MITSUMI D357B | ||
| Keyboard | Yamaha | Yamaha SY99 | 1991 |
Shugart - 26 |
Ok! |
26 pins to 34 pins floppy ribbon adapter needed. | FS:DOS (DD) FDD: MITSUMI D357B | ||
| Keyboard | Yamaha | Yamaha TX16W | 1987 |
Shugart |
Ok! |
Emulator jumper setting: S0/ID0A | FDD: Toshiba ND-352S-A (DD), Upside down floppy ribbon | ||
| Keyboard | Yamaha | Yamaha V50 | 1989 |
Shugart - 26 |
Should be Ok! |
26 pins to 34 pins floppy ribbon adapter needed. Emulator jumper setting: S0/ID0A | FS:DOS (DD) FDD: MITSUMI D357B | ||
| Sequencer | Yamaha | Yamaha QX1 | 1984 |
Ok! |
Emulator jumper setting: S0/ID0A | ||||
| Sequencer | Yamaha | Yamaha QX3 | 1987 |
Ok! |
Emulator jumper setting: S0/ID0A AND ID3B | FDD:Toshiba ND-352S-A, Specific settings needed ! Interface Mode=Custom, Pin 2=nDiskChange 1, Pin 34=nReady, Drive B input as Drives Motor ON, 2 drives emulation disabled | |||
| Sequencer | Yamaha | Yamaha QX5FD | 1986 |
Ok! |
Emulator jumper setting: S0/ID0A AND MON/ID3B | FDD: Toshiba ND-352S-A, Specific settings needed ! Interface Mode=Custom, Pin 2=nDiskChange 1, Pin 34=nReady, Drive B input as Drives Motor ON, 2 drives emulation disabled | |||
| Synthesizer | Yamaha | Yamaha W5 | 2001 |
Shugart - FFC24 |
Ok! |
24 pins FFC ribbon to 34 pins floppy ribbon adapter needed. Emulator jumper setting: S1/ID1A | FS:DOS (DD) FDD: Matsushita Electronic EME-213KR | ||
| Synthesizer | Yamaha | Yamaha W7 | 1994 |
Shugart - FFC24 |
Ok! |
24 pins FFC ribbon to 34 pins floppy ribbon adapter needed. Emulator jumper setting: S1/ID1A | FS:DOS (DD) FDD: Matsushita Electronic EME-213KR | ||
| Sequencer / Data filer | Yamaha | Yamaha MB01 | 1988 |
Shugart |
Should be Ok! |
FDD: Mitsumi D357T (DD) | |||
| Piano player control unit | Yamaha | Yamaha PPC10 MR / R | - |
Shugart |
Ok! |
FDD: Panasonic JU-253 (DD) | |||
| Disk recorder | Yamaha | Yamaha DRC-20 | - |
Shugart |
Should be Ok! |
Emulator jumper setting: S0/ID0A | FDD: Mitsubishi MF353C-152M (DD) | ||
| Disk orchestra module | Yamaha | Yamaha DOM-30 | 1989 |
Shugart |
Should be Ok! |
Emulator jumper setting: S0/ID0A | FDD: Mitsubishi MF353C-152M (DD) | ||
| Disk orchestra module | Yamaha | Yamaha DOU-10 | - |
Shugart |
Should be Ok! |
Emulator jumper setting: S0/ID0A | FDD: EPSON SMD-300 (DD) | ||
| Disk player | Yamaha | Yamaha MDP2 | - |
Shugart |
Should be Ok! |
Emulator jumper setting: S0/ID0A | FDD: EPSON SMD-300 (DD) | ||
| Disk recorder | Yamaha | Yamaha MDR-2P | - |
Should be Ok! |
Emulator jumper setting: S0/ID0A AND MON/ID3B | FDD: Toshiba ND-352S-A, Specific settings needed ! Interface Mode=Custom, Pin 2=nDiskChange 1, Pin 34=nReady, Drive B input as Drives Motor ON, 2 drives emulation disabled | |||
| Disk recorder | Yamaha | Yamaha MDR-3P | - |
Should be Ok! |
Emulator jumper setting: S0/ID0A AND MON/ID3B | FDD: Toshiba ND-352S-A, Specific settings needed ! Interface Mode=Custom, Pin 2=nDiskChange 1, Pin 34=nReady, Drive B input as Drives Motor ON, 2 drives emulation disabled | |||
| Sampler | Yamaha | Yamaha SU700 | 1998 |
IBM PC |
Ok! |
Support forum |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: Mitsubishi Electric MF355F-3252MG, HxC SD Rev F | |
| Sequencer / Data filer / GM Module | Viscount | MF01 Song Worker | 1996 |
Shugart |
Ok! |
Emulator jumper setting: S1/ID1A | FS:DOS (DD/HD) FDD: Panasonic JU-257A525P or JU-257A427P | ||
| Midi recorder | Yamaha | Yamaha EMQ-1 | 1988 |
QuickDisk-12 |
Ok! |
HxC Firmware for Gotek Only ! |
| Type | Brand | Model | Year |
Interface Type |
Compatibility |
Notes | Additional infos | Download |
|
|---|---|---|---|---|---|---|---|---|---|
| Computer | - | IBM PC Compatible (DD disks) | - |
IBM PC |
Ok! |
||||
| Computer | - | IBM PC Compatible (HD disks) | - |
IBM PC |
Ok! |
||||
| Computer | - | IBM PS/2 Compatible | - |
IBM PC |
Ok! |
! Floppy ribbon adapter needed ! Take care ! +12V & +5V power voltages present in the floppy ribbon. | |||
| Computer | - | MSX2 | - |
Shugart |
Ok! |
||||
| Computer | Acorn | A3000 | 1989 |
Shugart |
Ok! |
||||
| Computer | Acorn | A3010 | 1992 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | Write support : Fast SD Card recommended | ||
| Computer | Acorn | A3020 | 1992 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | Write support : Fast SD Card recommended | ||
| Computer | Acorn | A4000 | 1992 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | Write support : Fast SD Card recommended | ||
| Computer | Acorn | A5000 | 1991 |
IBM PC |
Ok! |
Emulator jumper setting: S1/ID1A | Write support : Fast SD Card recommended | ||
| Computer | Acorn | BBC | 1981 |
Shugart |
Ok! |
||||
| Computer | ACT/Apricot | Apricot Serie F | - |
Shugart |
Should be Ok! |
||||
| Computer | Amiga | Amiga 1000 | 1985 |
Shugart_Amiga |
Ok! |
||||
| Computer | Amiga | Amiga 1200 | 1992 |
Shugart_Amiga |
Ok! |
||||
| Computer | Amiga | Amiga 1200 Escom | 1995 |
Shugart_Amiga |
Ok! |
Escom motherboard modification should be reverted | |||
| Computer | Amiga | Amiga 2000 | 1987 |
Shugart_Amiga |
Ok! |
||||
| Computer | Amiga | Amiga 4000 | 1992 |
Shugart_Amiga |
Ok! |
||||
| Computer | Amiga | Amiga 500 | 1987 |
Shugart_Amiga |
Ok! |
(Upside down floppy ribbon) | FDD: Chinon FB-354 | ||
| Computer | Amiga | Amiga 600 (HD) | 1992 |
Shugart_Amiga |
Ok! |
FDD: Chinon FZ-354 | |||
| Computer | Amstrad | CPC 464 | 1984 |
Shugart |
Ok! |
Need an additional floppy controller! | |||
| Computer | Amstrad | CPC 6128 | 1985 |
Shugart |
Ok! |
FDD: Matsushita Electronic EME-155 | |||
| Computer | Amstrad | CPC 6128+ | 1990 |
Shugart |
Ok! |
||||
| Computer | Amstrad | PCW 8256 | - |
Shugart |
Ok! |
||||
| Computer | Amstrad | PCW 8512 | - |
Shugart |
Ok! |
||||
| Computer | Atari | 260 ST | 1985 |
Shugart_Atari |
Ok! |
||||
| Computer | Atari | 520 ST | 1985 |
Shugart_Atari |
Ok! |
||||
| Computer | Atari | 520 STF | 1986 |
Shugart_Atari |
Ok! |
||||
| Computer | Atari | 520 STE | 1989 |
Shugart_Atari |
Ok! |
||||
| Computer | Atari | 1040 ST | 1986 |
Shugart_Atari |
Ok! |
||||
| Computer | Atari | 1040 STFM | 1986 |
Shugart_Atari |
Ok! |
||||
| Computer | Atari | 1040 STF | 1986 |
Shugart_Atari |
Ok! |
||||
| Computer | Atari | 1040 STE | 1989 |
Shugart_Atari |
Ok! |
||||
| Computer | Atari | FALCON030 | 1992 |
Shugart_Atari |
Ok! |
||||
| Computer | Atari | MEGA ST | 1987 |
Shugart_Atari |
Ok! |
||||
| Computer | Atari | MEGA ST2 | 1987 |
Shugart_Atari |
Ok! |
||||
| Computer | Atari | MEGA STE | 1991 |
Shugart_Atari |
Ok! |
||||
| Computer | Atari | Sparrow | 1992 |
Shugart_Atari |
Ok! |
||||
| Computer | Bondwell | Bondwell 12/14 | 1984 |
Shugart |
Ok! |
Preview | |||
| Gaming System | Bung | Game Doctor SFIII | - |
Ok! |
|||||
| Computer | Camputers | CamputerLynx | 1983 |
Shugart |
Ok! |
||||
| Computer | Commodore | C64 + C1581 | - |
Shugart |
Ok! |
Need the C1581 ! | |||
| Computer | Cromemco | Cromemco C-10 | - |
Shugart |
Ok! |
||||
| Computer | Dragon Data, Ltd | Dragon 32 | - |
Shugart |
Ok! |
Need an additional floppy controller! | |||
| Computer | Dragon Data, Ltd | Dragon 64 | - |
Shugart |
Ok! |
Need an additional floppy controller! | |||
| Computer | Elektronika | DVK + MY FDC | - |
Shugart |
Ok! |
PDP-11 Compatible. Aka Elektronika MS-0501 / MS-0502 | |||
| Computer | Elektronika | Elektronika MC0585 / 85 | - |
Shugart |
Ok! |
(USSR DEC Pro-350 clone) | |||
| Computer | Elektronika | UKNC | - |
Shugart |
Ok! |
PDP-11 Compatible. Aka Elektronika MS-0511 | |||
| Computer | Enterprise | Enterprise 64 & 128 | - |
Shugart |
Ok! |
Need an additional floppy controller! | |||
| Computer | Fujitsu | FM Towns II | 1991 |
Shugart |
Ok! |
||||
| Computer | Fujitsu | FM Towns Marty | 1993 |
Shugart |
Ok! |
1Ko resistor pull-up on RDATA (wire number 30) needed (HxC Rev F footprint : R12) | |||
| Computer | Fujitsu | FM77AV40SX | 1988 |
Shugart |
Ok! |
||||
| Computer | Fujitsu Siemens | Fujitsu Siemens Scenic 500 | - |
IBM PC |
Ok! |
||||
| Computer (Drives unit) | HP | HP 9153A/B/C | - |
Shugart |
Ok! |
Adapter needed. Please see the pdf ! | |||
| Computer | IMSAI | IMSAI 8080 | 1975 |
Shugart |
Ok! |
Morrow DJ2D FDC, 8-inch drives. HxC SD Rev F | |||
| Computer | Japax | Japax JAPT 4G | Ok! |
Picture |
Preview | ||||
| Computer Board | Jim Ferguson | Ferguson BigBoard II | - |
Shugart |
Ok! |
||||
| Computer | Kaypro | Kaypro 4-84 | 1984 |
Shugart |
Ok! |
||||
| Computer | Kaypro | Kaypro I | 1982 |
Shugart |
Ok! |
||||
| Computer | Kaypro | Kaypro II | 1982 |
Shugart |
Ok! |
||||
| Computer | Lviv PK-01 | Lviv PK-01 | - |
Shugart |
Ok! |
||||
| Computer | Memotech | Memotech MTX | 1983 |
Shugart |
Ok! |
||||
| Computer | Micromos | Toutatis | 1983 |
Shugart / IBM PC |
Ok! |
||||
| Computer Board | N8VEM | N8VEM + DiskIO | - |
Shugart / IBM PC |
Ok! |
||||
| Computer | NEC | FC-9801K,F | 1996 |
Shugart |
Ok! |
VFO board needed,Emulator jumper setting: S0/ID0A | |||
| Computer | NEC | FC-9821 Ke,Ka | - |
Shugart |
Ok! |
VFO board needed,Emulator jumper setting: S0/ID0A | |||
| Word Processor | NEC | ??mini5H PWP-50H | - |
Shugart |
Ok! |
||||
| Computer | NEC | PC-6601(SR) | 1985 |
Shugart |
Ok! |
||||
| Computer | NEC | PC-8001 | 1979 |
Shugart |
Ok! |
||||
| Computer | NEC | PC-8001mkII | 1982 |
Shugart |
Ok! |
||||
| Computer | NEC | PC-8801 | 1981 |
Shugart |
Ok! |
||||
| Computer | NEC | PC-9801VX21 | - |
Shugart |
Ok! |
||||
| Computer | NEC | PC-9821 Xe10 | - |
Shugart |
Ok! |
||||
| Computer | NEC | PC-9821As2 | - |
Shugart |
Ok! |
26 pins to 34 pins floppy ribbon adapter needed. | |||
| Computer | Oric | Oric Atmos | 1984 |
Shugart |
Ok! |
Need an additional floppy controller! : MicroDisk / Cumana | |||
| Computer | Osborne | Osborne 1 | 1981 |
Shugart |
Ok! |
! Custom pinout ! -> Floppy Ribbon Adapter needed. | |||
| Computer | Philips | Philips NMS8250 | 1986 |
Shugart |
Ok! |
MSX Compatible | |||
| Computer | Philips | Philips NMS8255 | 1987 |
Shugart |
Ok! |
MSX Compatible | |||
| Computer | Philips | Philips Video Writer 4260 | - |
Shugart |
Ok! |
||||
| Computer | Processor Technology | Sol-20 | - |
Shugart |
Ok! |
Morrow DJ2D FDC, HxC SD Rev F | |||
| Computer | RML | RML 380Z | 1977 |
Shugart |
Ok! |
||||
| Computer | RML | RML 480Z | 1982 |
Shugart |
Ok! |
||||
| Computer | Robotron | KC 85/X | - |
Shugart |
Ok! |
||||
| Computer | SAM Coupe | SAM Coupe | - |
Shugart |
Ok! |
||||
| Gaming System | Sega | Sega System 24 | 1988 |
Shugart |
Ok! |
||||
| Gaming System | SF Professor II | Bung | - |
IBM PC |
Ok! |
||||
| Computer | Sharp | Sharp MZ80B | 1979 |
Shugart |
Ok! |
||||
| Computer | Sharp | Sharp X1 | 1982 |
Shugart |
Ok! |
FDD: SANKYO SEIKI F2SPR69 5.25 DSDD | |||
| Computer | Sharp | X68000 | 1987 |
Shugart |
Ok! |
For full support (auto eject ...), an additional function board is needed (work in progress) | |||
| Computer | SIIG | SIIG MiniSys 286 | Ok! |
Picture |
Preview | ||||
| Computer | Sinclair | QL | - |
Shugart |
Ok! |
||||
| Computer | Sinclair | ZX Spectrum +3 | 1987 |
Shugart |
Ok! |
||||
| Computer | Sord | Sord Future32 | - |
Shugart |
Ok! |
||||
| Computer | Sord | Sord M68 | 1983 |
Shugart |
Ok! |
HD 2 sides 77 Tracks FM/MFM 256Bytes sectors 26 Sectors/track | |||
| Gaming System | Super Wild Card | Super Wild Card DX | - |
IBM PC |
Ok! |
||||
| Computer | Tandy | Coco | 1980 |
Shugart |
Should be Ok! |
||||
| Computer | Tandy | Coco 2 | 1983 |
Shugart |
Should be Ok! |
||||
| Computer | Tandy | Coco 3 | 1986 |
Shugart |
Ok! |
Need an additional floppy controller! : FD-501 | (Slim HxC and Gotek HxC tested) | ||
| Computer | Tandy | Tandy 1000 EX | 1986 |
Shugart |
Ok! |
||||
| Computer | Tandy | Tandy 1000 HX | 1987 |
Shugart |
Ok! |
! Floppy ribbon adapter needed ! Take care ! +12V & +5V power voltages present in the floppy ribbon. | |||
| Computer | Tandy | Tandy 1000 SL | 1989 |
Shugart |
Should be Ok! |
! Floppy ribbon adapter needed ! Take care ! +12V & +5V power voltages present in the floppy ribbon. | |||
| Computer | Tandy | Tandy 1000 SX | 1986 |
Shugart |
Should be Ok! |
! Floppy ribbon adapter needed ! Take care ! +12V & +5V power voltages present in the floppy ribbon. | |||
| Computer | Tandy | Tandy 1000 TL/2 | - |
Shugart |
Ok! |
||||
| Computer | Tandy | Tandy 1000 TX | 1986 |
Shugart |
Ok! |
! Floppy ribbon adapter needed ! Take care ! +12V & +5V power voltages present in the floppy ribbon. | |||
| Computer | Tandy | TRS-80 | 1977 |
Shugart |
Ok! |
||||
| Computer | Tangerine | Microtan 65 | 1979 |
Shugart |
Ok! |
||||
| Computer | Tatung | Tatung Einstein | 1984 |
Shugart |
Ok! |
||||
| Computer | Texas Instrument | TI99/4A | 1979 |
Shugart |
Ok! |
||||
| Computer | Thomson | MO5 | 1984 |
Shugart |
Ok! |
Need an additional floppy controller! : CD90-640 | |||
| Computer | Thomson | TO8D | 1986 |
Shugart |
Ok! |
||||
| Computer | Tiki Data | Kontiki-100 / Tiki-100 | 1984 |
Shugart |
Ok! |
||||
| Computer | Victor | Victor V386MX | - |
IBM PC |
Ok! |
||||
| Computer | Visual Technology | Visual 1050 | 1983 |
Shugart |
Ok! |
2* 400KB, 5 1/4, SSDD |
| HxC Floppy Emulator project | Legal Mentions | (C)2006-2024 HxC2001 / Jean-François DEL NERO |
