Blume & Redecker AM 2100 Coil Winder Machine floppy disk drive replaced by an HxC Floppy Emulator




The Floppy disk drive of this Blume & Redecker AM 2100 Coil Winder machine was successfully replaced by an HxC Floppy Emulator.

- Original floppy disk drive was analyzed and backuped by the HxC Floppy Emulator software.

This machine use a special disk format : 40 tracks, 1 side, 4 sectors per tracks, 1024 bytes per sector, Sector ID starting from 0, Interleave 1, Bitrate : MFM 250Kbits/s

User Feedback :

<<
Hi,

I successfully replaced a 40 track single sided disk drive of a AM2100 coil winding machine with the HxC2001 floppy emulator.
I wish you to thank you for this nice product and the great software that allowed me to create the right disk format for the machine.

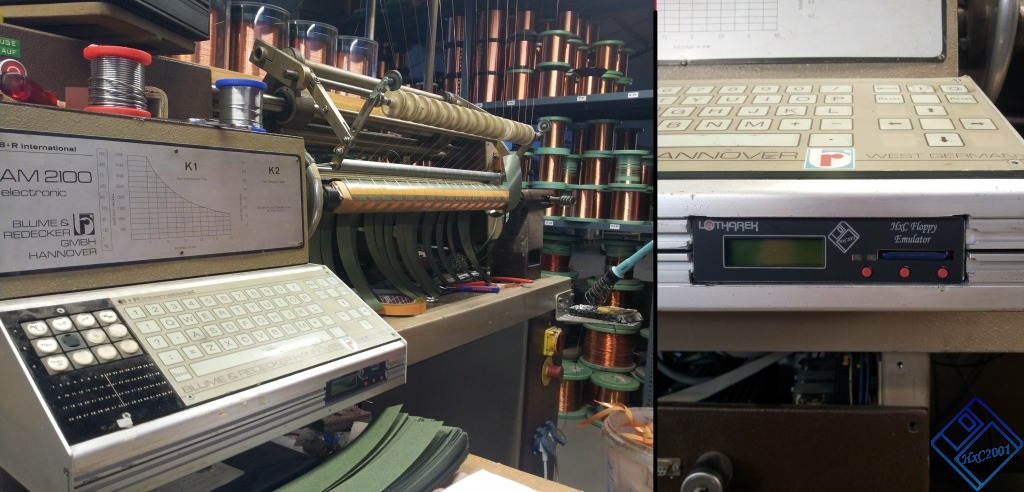

A picture of the machine is included.

The right config is:
Track type: MFM
Number of track: 40
Sectors per track: 4
Sector ID start: 0
RPM: 300
Sectors size: 1024
Bitrate: 250000
GAP3 length: 24
Interleave: 1
Skew: 0

Thanks a lot again
H.W

>>

October 20, 2010
