Error when saving PCG on Korg Triton Studio

[Ziah4u]

Hi,
I've been using a Gotek drive on my Korg Triton Studio for a while now and everything works perfect except for saving PCG files.

A message says "Error in writing to medium".
I find this to be odd because I can save other files like my SEQ and sampling data. The drive can also read and load any file (including PCG) to my keyboard.

The only PCG file I can save is the global setting but not the programs, combination, arp pattern or drum kit. They all give the same error message.

I have tried several different flash drives and also changing the jumper location on the drive but get the same result.

I really love using this Gotek drive and would wish that this function could work as it is greatly needed.

[Jeff]

What can you read on the Gotek's screen without any usb stick connected?

[Ziah4u]

hXc or hHc

[Jeff]

What is the average file size of "PCG" files ?

[Jeff]

What is the average file size of "PCG" files ?

And btw, share you floppy image file and check the firmware version you are using : press both buttons, choose 'F' , and read the 4 numbers.

[Ziah4u]

Firmware version is 3-4-16-12
Disk image

DSKA0000.zip

(113.49 KiB) Downloaded 346 times

The average file size of PCG files is about 1.2 mb

PCG includes Programs, Combinations and Global settings of the keyboard that can be backed up on a diskette.

The factory reset PCG files can be used to reset or restore the keyboard by downloading from KORG website. I did this and used one of the HFE disk images to save it and load it onto the keyboard using Gotek disk drive.

This worked great. But when I tried to save the same PCG files back to the disk image it gives an "error in writing to medium" message.

I mentioned this because I don't think the files are too big for the disk. I even tried saving only one bank or part of the PCG file and it still didn't work.

[Jeff]

Yes there is effectively a problem : i see a bad sector. Look likes the write was interrupted by something.
Have you tried another/different usb stick ?

Please retry with this img file (The firmware support the img files)

[Ziah4u]

IT WORKED!!

OMG!!! YOU'RE A GENIUS!!! THIS IS AWESOME!!! I was so excited to see this saving at last. All my great tones! I probably held my breath until it was done. THANK YOU SO MUCH!!! MUCH RESPECT.

I must admit I was sceptical at first but was hopeful. You're truly an amazing person to provide such fantastic support for this product.I never expected such a quick response. I wish you well in your business.

Thanks again Jeff.

Ps. The file you sent me I had to change the name from DKSA0000 to DSKA0000.HFE for it to work. Maybe it was a typo in naming the file.

[Jeff]

Ps. The file you sent me I had to change the name from DKSA0000 to DSKA0000.HFE for it to work. Maybe it was a typo in naming the file.

mhh no the file in the zip have the .img extension. this should work "out the box" (and this is not a hfe file!)
Maybe you should update the firmware too.

and you should have a look to this, this may interest you :
https://hxc2001.com/docs/gotek-floppy-e ... ition.html

[stardust3232]

dear friends, so i get great Help from Jeff , thank you Jeff for your Help long houers for Installing the Right Firmware on my Gotek Floppy Emu for my KOrg Triton.

Now my problem is how I can get the PCG Files on my PC as Image HFE Files on the USB Stick!

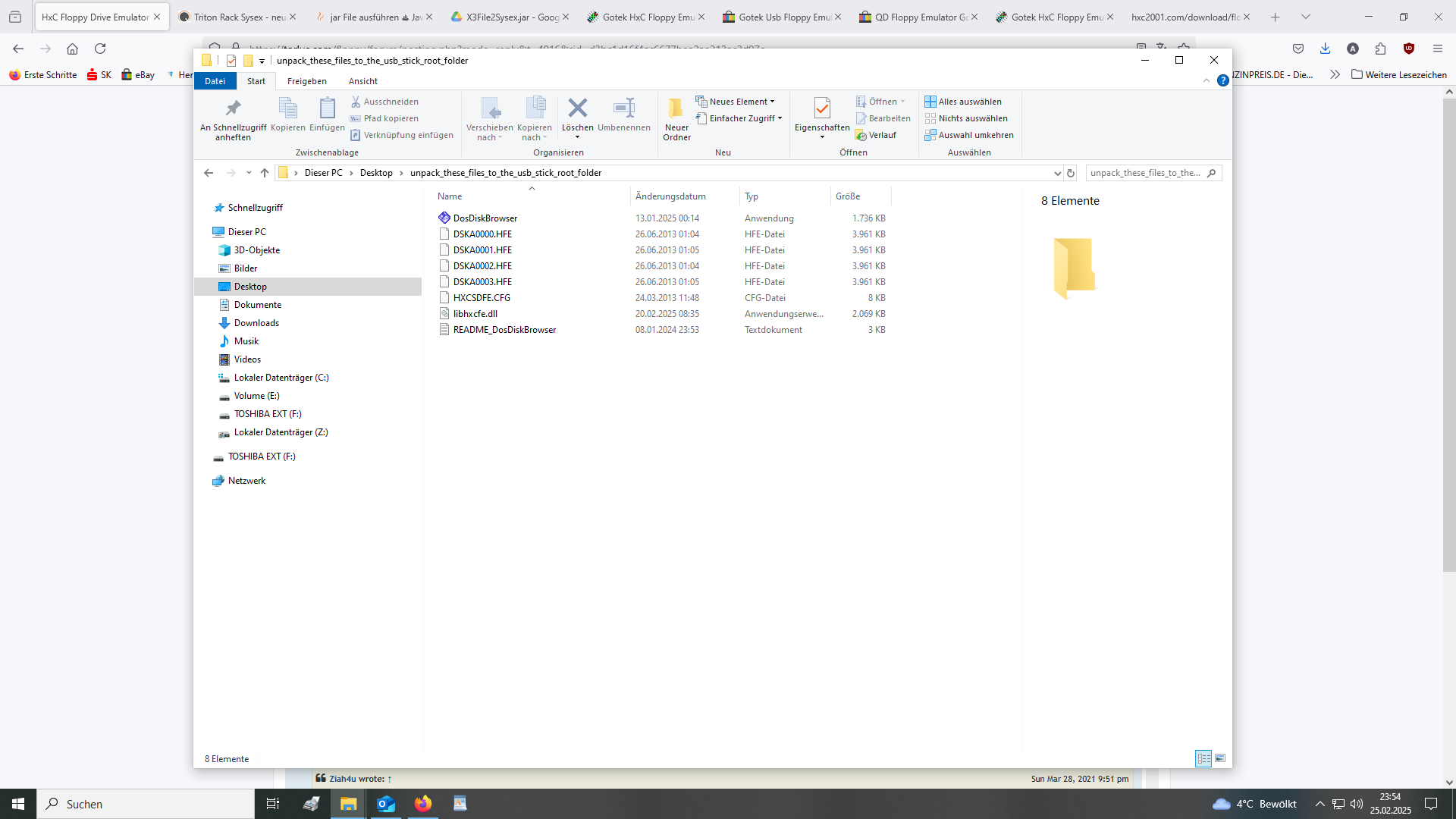

Can someone tell me please step by step. On my USB Stik is now the DOS DISK BROWSER and the DLL data and some HFE . Here I can Start the Browser, but how can i create a Image Data from my CFG data for Korg Triton on my PC?

Screenshot (4).png (177.99 KiB) Viewed 1689 times

[stardust3232]

ok friends, I get it

So im starting the Browser from Floppy USB Stik, and get an Empty HFS like DSK000HFS image, and deleted the READ ME text there, and drop the PCG Files in the empty Arena in Browser. And Click on CLOSE to Save. Now it works on my Triton.

So what I have made Wrong all the time?:
I selected in the PCG File Folders only the PCG Data, that was wrong, I put all the Folder in the empthy arena and close. so its works

Thank you very very very much against to Jeff and the Email Support. YOu are the Best. THANK YOU!!!!
