Serialbridge doesnt transfer to gotek via ftdi232

[Kna]

Hi Jeff,

I have a gotek connected to a ftdi232-interface -> USB on Laptop. All connections (gnd, vcc, tx, rx) seems to be correct.

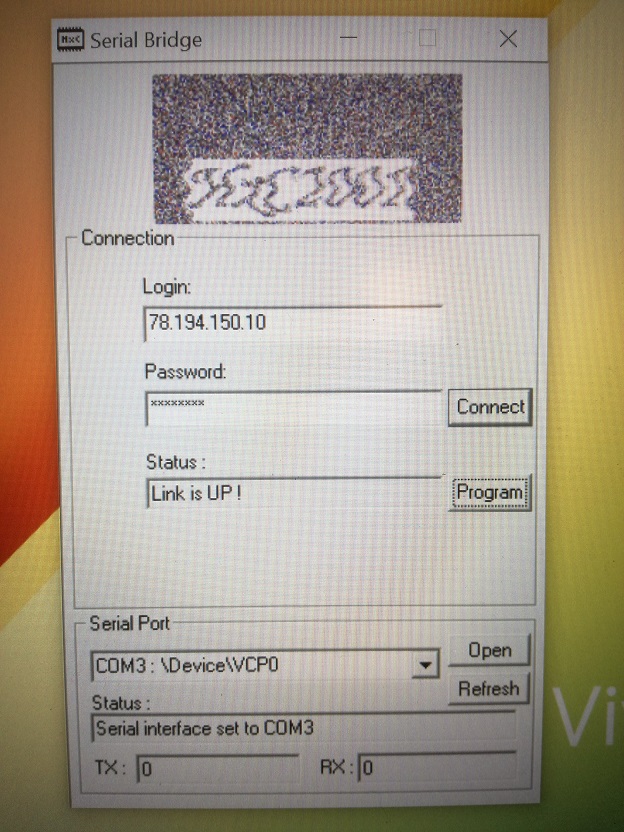

Ftdi232-board lights up red when connected. Serialbridge-software seems to link up to server and find a device at com3, but then just freezes and never starts the transfer.
I have tried this with several ftdi232-units. It seems to be a software problem. Any suggestions?


[burnclouds]

Same problem.
I'm using the adafruit FTDI friend
https://www.adafruit.com/product/284

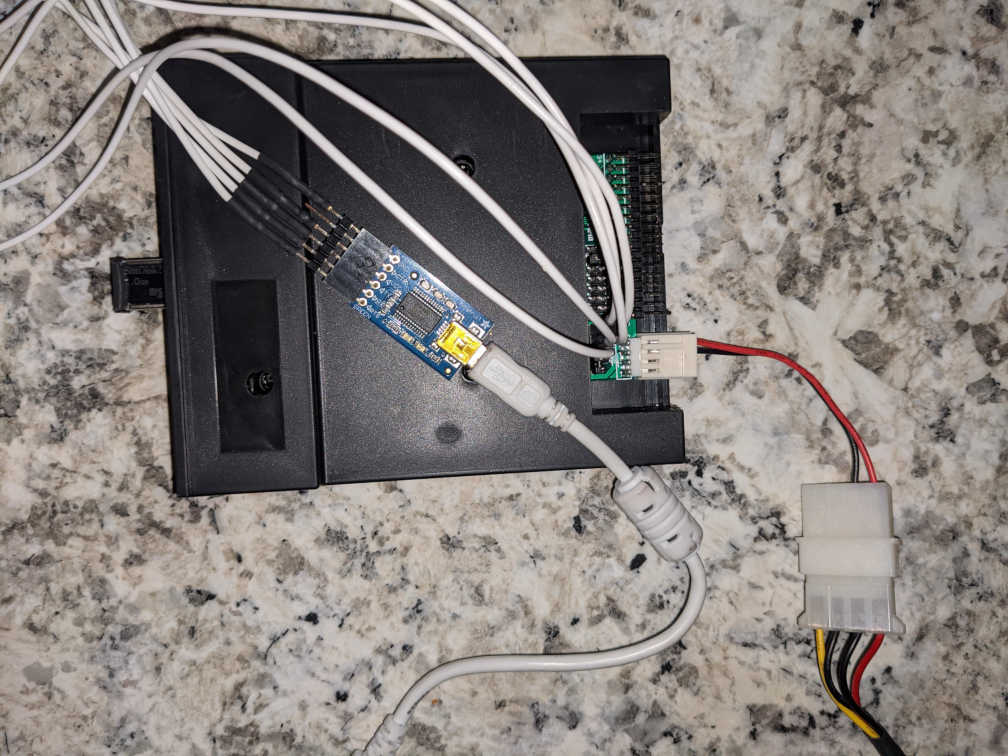

FTDI -> GoTek
TX -> RX
RX -> TX
GND -> GND

Ive tried:
VCC -> +5v
and
5+VDC and GND from host system power (Floppy power connector)

Tried both power sources with GoTek RTS -> GND several times and also tried FTDI RTS -> GoTek RTS.

None of this works.

Note: My FTDI Friend us unmodified so logic level is +3.3v and VCC is +5.

[Jeff]

Hi Jeff,

I have a gotek connected to a ftdi232-interface -> USB on Laptop. All connections (gnd, vcc, tx, rx) seems to be correct.
Ftdi232-board lights up red when connected. Serialbridge-software seems to link up to server and find a device at com3, but then just freezes and never starts the transfer.
I have tried this with several ftdi232-units. It seems to be a software problem. Any suggestions?



You need to put your login in the "Login" field, not an IP address.

[Jeff]

Same problem.
I'm using the adafruit FTDI friend
https://www.adafruit.com/product/284

FTDI -> GoTek
TX -> RX
RX -> TX
GND -> GND

Ive tried:
VCC -> +5v
and
5+VDC and GND from host system power (Floppy power connector)

Tried both power sources with GoTek RTS -> GND several times and also tried FTDI RTS -> GoTek RTS.

Now of this works.

Note: My FTDI Friend us unmodified so logic level is +3.3v and VCC is +5.

Not the same problem... Please read my emails...

[burnclouds]

Understood about the emails and a diferent problem. Should i create a new post or keep piggy backing on this one?


[Jeff]

Understood about the emails and a diferent problem. Should i create a new post or keep piggy backing on this one?


Yes each support case are generally different. but i am already supporting you by email (preferred method), i am not sure that there is any interest to duplicate it on the forum...

[Kna]

Thanks for the quick reply Jeff. Solution didnt work, though. Sent you an email.

[Jeff]

Thanks for the quick reply Jeff. Solution didnt work, though. Sent you an email.

sent you an pre-filled pwd file by email. please try it.

[Kna]

That solved the problem. Thanks Jeff!
