HELP! SecSerialBridge software - ends with an error.

[San010101]

[Jeff]

According to the server logs there is something unreliable with the link to the pic18.
Please check:
- the board power supply.
- the board quartz
- the serial connection.

If possible try another serial usb adapter and/or an another pc.

[San010101]

According to the server logs there is something unreliable with the link to the pic18.
Please check:
- the board power supply.
- the board quartz
- the serial connection.

If possible try another serial usb adapter and/or an another pc.

the board power supply. 5.05V
- the board quartz 9.99MHz
- the serial connection Connection stable
serial usb adapter chip CP2102, ch340
another pc yes
PIC18F4620 test 2 devices

process results 3/100, 28/100, 53/100, 28/100...............

[Jeff]

[...]
serial usb adapter chip CP2102, ch340
[...]

Check if pull-ups resistors are needed on RX & TX
or
Try another serial usb adapter or a MAX232 on a normal serial port.

[San010101]

the board power supply


the board quartz




the serial connection

[San010101]

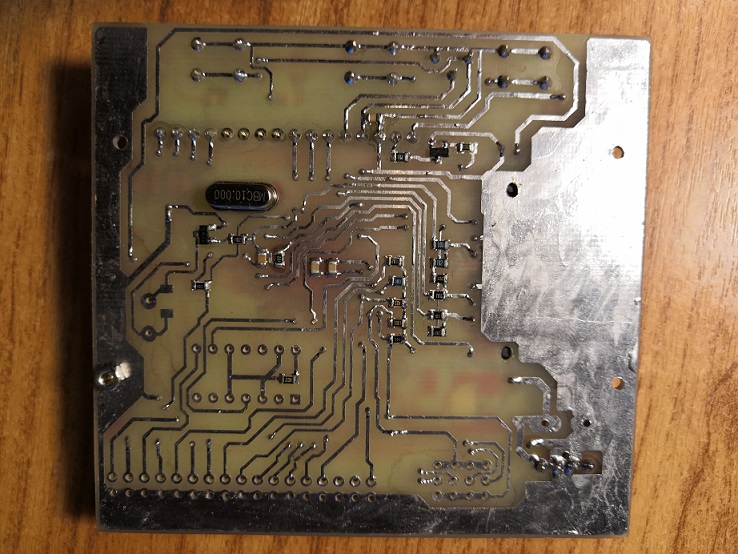

CS 23K256


CLK 23K256


programmer


setup


firmware

[San010101]

https://drive.google.com/file/d/1RPwNGw ... sp=sharing
https://drive.google.com/file/d/1xDOQdZ ... sp=sharing

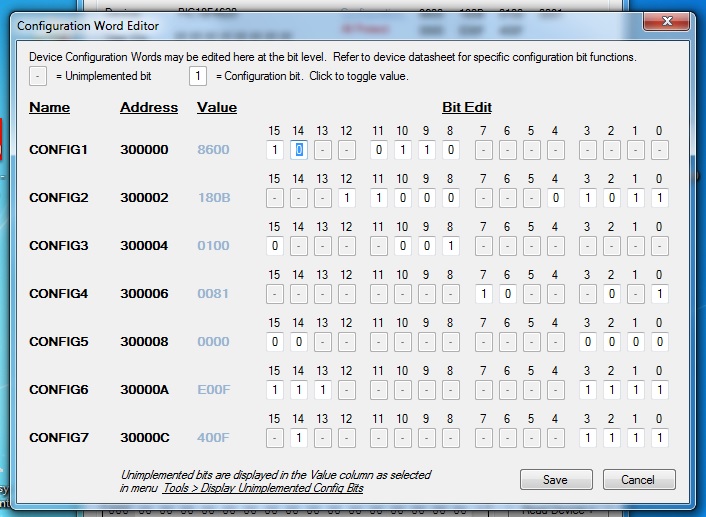

firmware setup

[Jeff]

There is too much spikes/glitches on the serial line.
And i don't understand the 23k256 clock !?!

[ncbelov]

Hello!
0. The server is not defined as a device.
1.PIC18F4620 flashed.
2. The LED does not blink.
3. On quartz 10 MHz.
4. If you turn off the quartz, the blinking of the LED appears at a frequency of 15 Hz.
What can be wrong?

[Jeff]

Hello!
0. The server is not defined as a device.
1.PIC18F4620 flashed.
2. The LED does not blink.
3. On quartz 10 MHz.
4. If you turn off the quartz, the blinking of the LED appears at a frequency of 15 Hz.
What can be wrong?

Is the quartz oscillating properly ?

[ncbelov]

Yes.10.0005mhz

[Jeff]

Yes.10.0005mhz

Then check the SRAM connection/communication. An auto-test should be done at power up.

[ncbelov]

If the SRAM is not working, can there be problems with the LED blinking?

[Jeff]

If the SRAM is not working, can there be problems with the LED blinking?

blinking may be normal. Can you show me how it is blinking ?

[ncbelov]

No memory sram.
https://youtu.be/kpgR16HhV_Q
