SD EMULATOR CASED VERSION jumper issues

[lotharek]

Dear all

Please, remember that in SD EMULATOR - cased version - pins are swicthed to what You read in HXC manual. It is caused by usage of angled pins to reach outer edge of box.

So, in manual we have 3 rows of 4 pins - normal non cased version. In cased version we also have the same number of pins, but :

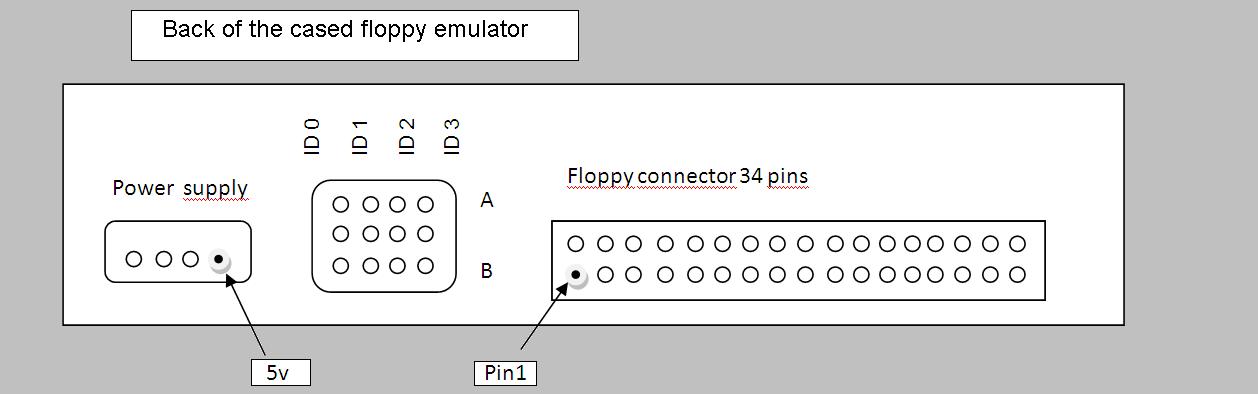

when You look at sd version - non cased -- pins for drive A are the lowest row. IN CASED ARE HIGHEST !!!
when You look at sd version - non cased -- pins for drive B are the highest row. IN CASED ARE LOWEST !!!
