Machines without CSYNC

[780Tech]

There is a line in the HxC documentation stating:

On machines without CSYNC signal available you can enable the additional input for the VSYNC signal at Gotek U8 Pin 1 (PB12)

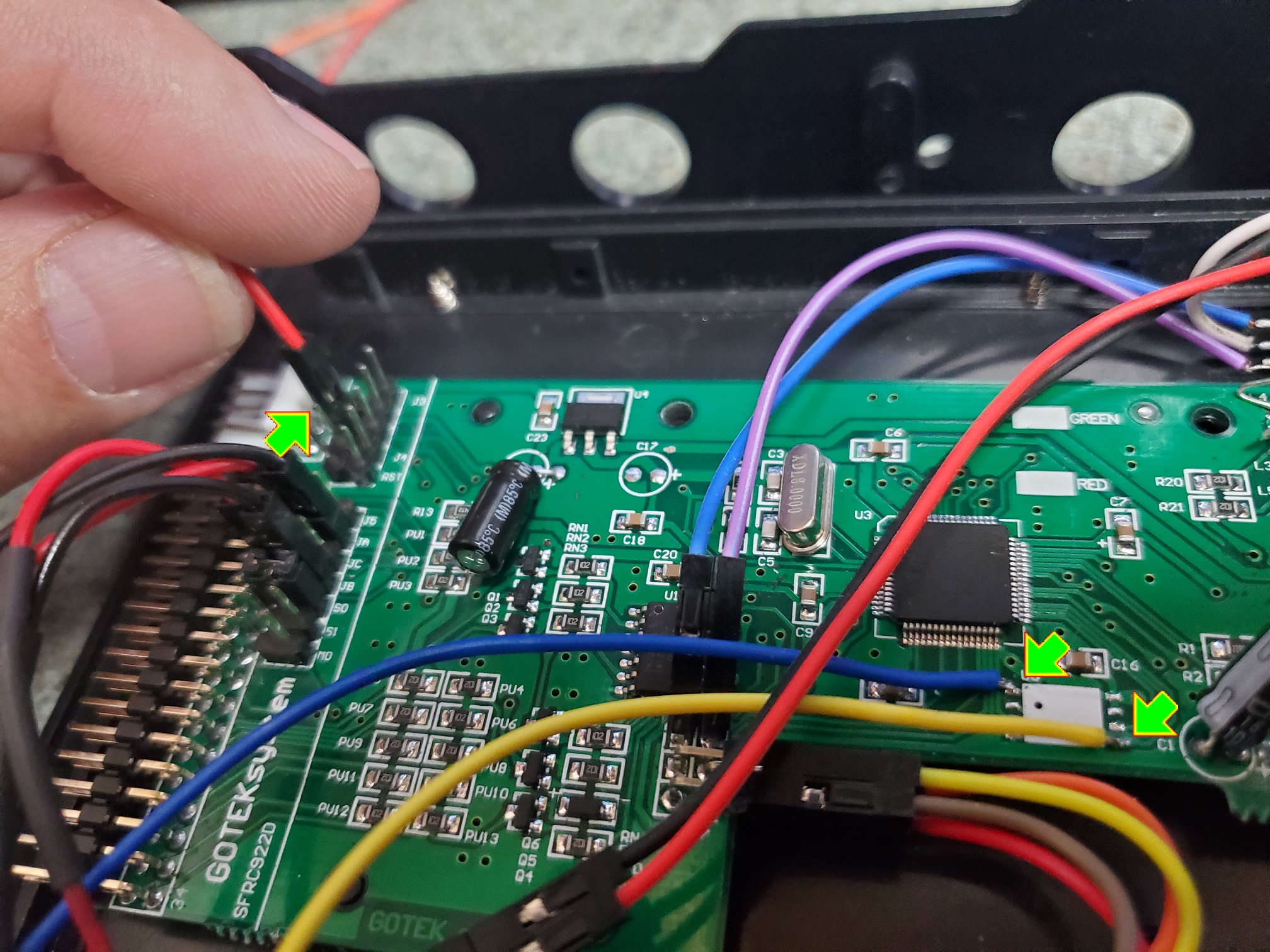

Given there are no Photos of anyone doing this out there I have made my own.



http://www.780tech.com/vsync.jpg
